(47A02001829[003]) - COOLING OIL SENSOR RELOCATION, FRONT BRAKE (UPGRADE BULLETIN W0706)

Запчасти Case 335 (47A02001829[003]) - COOLING OIL SENSOR RELOCATION, FRONT BRAKE (UPGRADE BULLETIN W0706) (09) - Implement / Hydraulics / Frame / Brakes

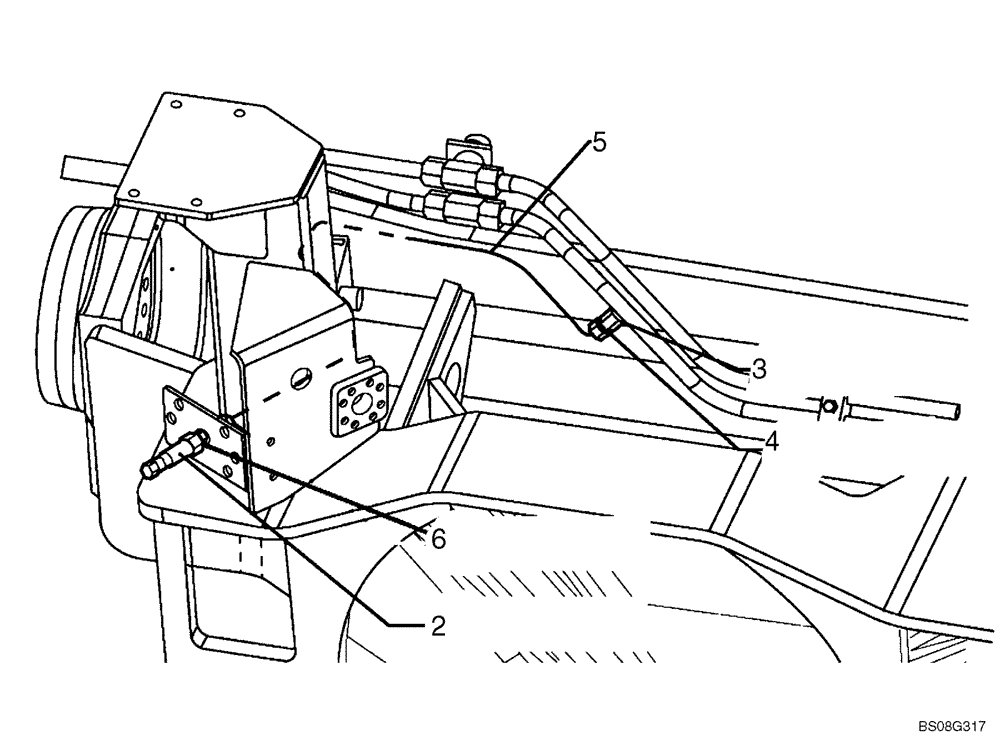

Схема запчастей Case 335 - (47A02001829[003]) - COOLING OIL SENSOR RELOCATION, FRONT BRAKE (UPGRADE BULLETIN W0706) (09) - Implement / Hydraulics / Frame / Brakes
6
5
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Dealer Installed Parts; See Product Upgrade Program Bulletin W0706 For Model 335 Tier 2 P.I.N. HHD000501 to HHD000510 / Model 340 Tier 2 P.I.N., Serial Range: HHD000701-HHD000764

1шт.

2

89500419869

PRESSURE SWITCH

2шт.

3

89500418011

FITTING

Adapter

1шт.

4

89500408181

CONNECTION

1шт.

5

89500408976

HOSE

1шт.

6

89500418521

HYD CONNECTOR

Bulkhead

1шт.

Выбрано товаров: 6
