Запчасти Case 335 (47A02001829[002]) - BRAKE COOLING CHECK VALVE (UPGRADE BULLETIN W0706) (09) - Implement / Hydraulics / Frame / Brakes

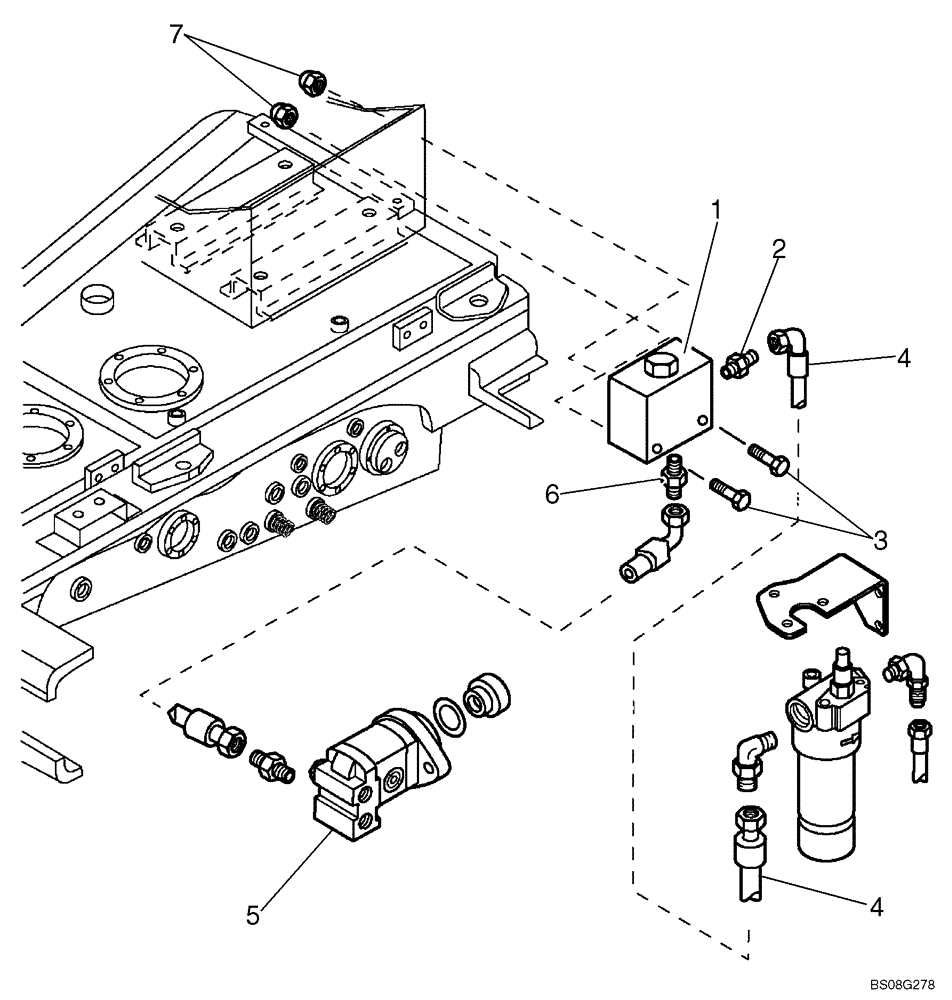

Схема запчастей Case 335 - (47A02001829[002]) - BRAKE COOLING CHECK VALVE (UPGRADE BULLETIN W0706) (09) - Implement / Hydraulics / Frame / Brakes
3
7
4
1
4
2
6
5

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Dealer Installed Parts; See Product Upgrade Program Bulletin W0706 For Model 335 Tier 2 P.I.N. HHD000501 to HHD000510 / Model 340 Tier 2 P.I.N., Serial Range: HHD000701-HHD000764

1шт.

1

89500421187

VALVE

Check Un-directional

1шт.

2

89500409362

HYD CONNECTOR

2шт.

3

890012143

SCREW, Cap

2шт.

4

89500407752

HOSE

Hyd.

1шт.

5

89500392143

HYDRAULIC PUMP

1шт.

6

89500409362

HYD CONNECTOR

2шт.

7

8900125009

NUT

2шт.

Выбрано товаров: 8
