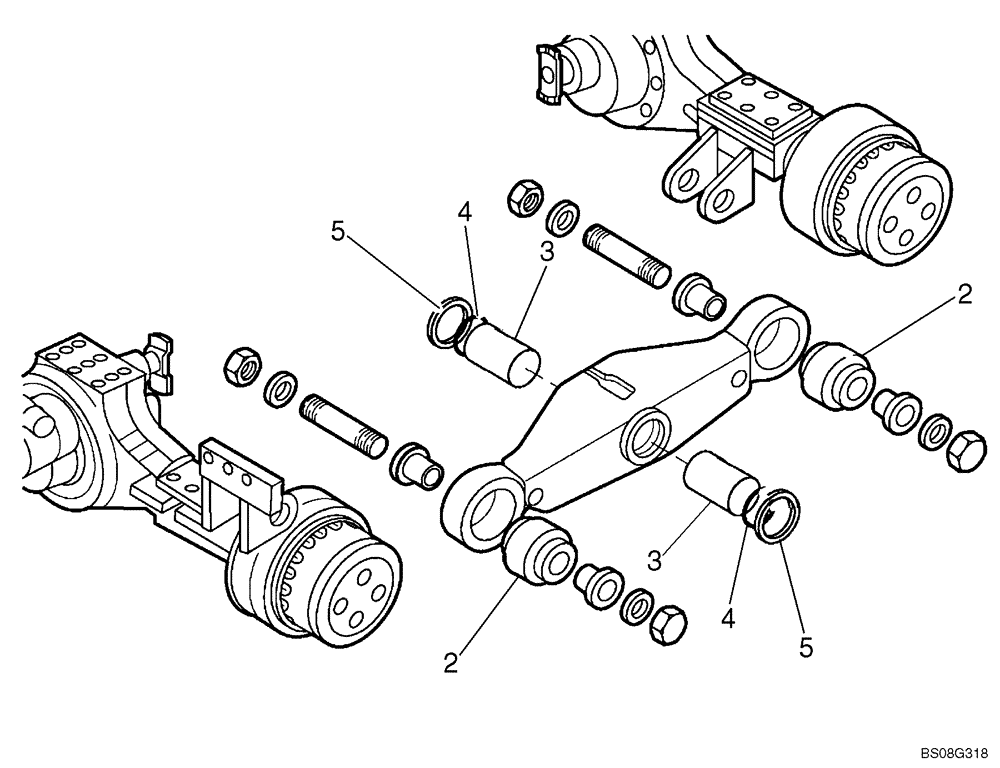

Запчасти Case 335 (39A00010627[002]) - RUBBER BUSHING REPLACEMENT, REAR SUSPENSION (UPGRADE BULLETIN W0706) (09) - Implement / Hydraulics / Frame / Brakes

REF

INSTRUCTION

Dealer Installed Parts: See Product Upgrade Program Bulletin W0706 For Model 335 Tier 2 P.I.N. HHD000501 to HHD000510 / Model 340 Tier 2 P.I.N., Serial Range: HHD000701-HHD000764

1шт.

2

89500418188

BUSHING,89mm ID x 214mm OD x 196.7mm L

4шт.

3

8900192228

BUSHING

Central

4шт.

4

8998197288

RING

Seal

4шт.

5

8900192217

SCRAPER

SPACER

4шт.
