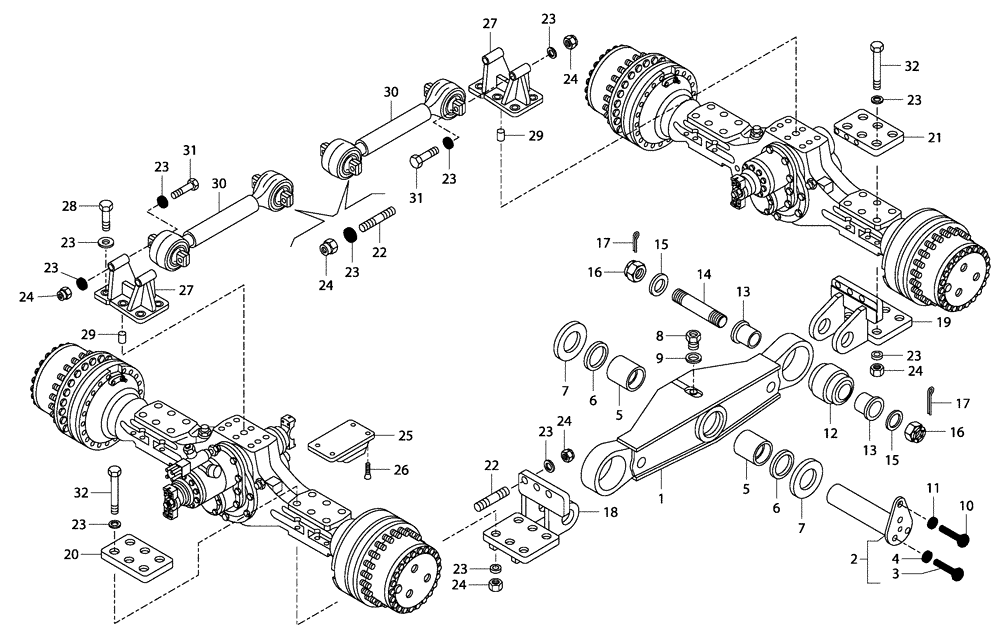

Запчасти Case 335 (39A00010627[001]) - REAR SUSPENSION - TIE RODS (87447860) (09) - Implement / Hydraulics / Frame / Brakes

1

89500405630

ARM

2шт.

2

8900192213

PIN

ASSY

2шт.

Include(s) 3, 4, 10, 11

1шт.

3

8900177301

BOLT

M16 x 60

6шт.

4

8900110597

WASHER

6шт.

5

89500421000

BUSHING

Replaces 8900192228 Bushing

4шт.

REF

INSTRUCTION

Required For Field Modification Of Rear Suspension Per Astra Bulletin SI-ADT031/06

1шт.

6

8998197288

RING

4шт.

7

89500421101

WASHER

Replaces 8900192217 Washer, Scraper

4шт.

REF

INSTRUCTION

Required For Field Modification Of Rear Suspension Per Astra Bulletin SI-ADT031/06

1шт.

8

89500409013

ADAPTER

Replaces 8900194860 Plug Used On Some Models

2шт.

9

8900157037

COPPER SEAL

2шт.

10

8916637134

BOLT

M20 x 50

2шт.

11

8900140552

COLLAR

2шт.

12

89500418188

BUSHING,89mm ID x 214mm OD x 196.7mm L

Replaces 8998197289 Bushing

4шт.

13

89500406663

BUSHING

8шт.

14

89500406664

PIN

4шт.

15

89500406666

WASHER

8шт.

16

89500406665

NUT

8шт.

17

8916863701

PIN, SPLIT (COTTER)

PIN, COTTER 8 x 90

8шт.

18

89500406030

SUPPORT

2шт.

INTERM. LH - REAR RH

1шт.

19

89500406031

SUPPORT

2шт.

INTERM. RH - REAR LH

1шт.

20

89500405905

PLATE

2шт.

INTERM. LH - REAR RH

1шт.

21

89500405906

PLATE

2шт.

INTERM. RH - REAR LH

1шт.

22

89500402625

STUD

20шт.

23

8917093274

WASHER

84шт.

24

8917156531

NUT

M24 x 2

40шт.

25

89500424563

RUBBER BLOCK

Replaces 89500407852 Pad

4шт.

26

8900958408

SCREW

M10 x 1.5 x 20

16шт.

27

89500405735

SUPPORT

2шт.

28

8916620134

BOLT

M24 x 80

12шт.

29

89500402751

PLUG

4шт.

30

89500407500

TIE-ROD

2шт.

31

89500402619

BOLT,Hex, M24 x 2 x 210mm

4шт.

32

89500402620

BOLT,Hex, M24 x 2 x 330mm, Cl 10.9

24шт.
