Запчасти Case 335 (51A01001257[001]) - DRIVER CAB - ELECTRICAL EXTERNAL DRIVING MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

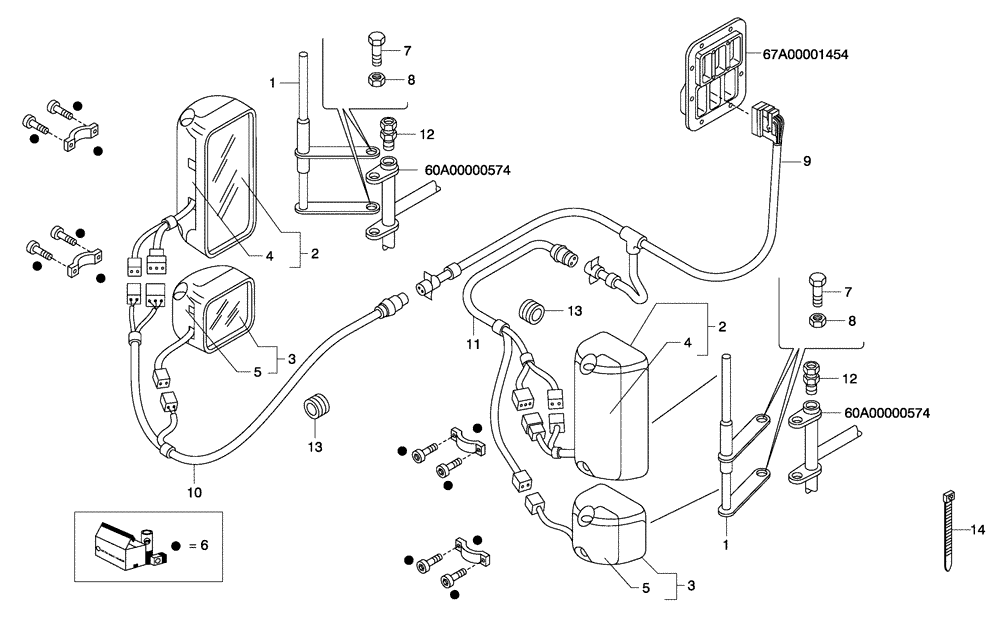

Схема запчастей Case 335 - (51A01001257[001]) - DRIVER CAB - ELECTRICAL EXTERNAL DRIVING MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
11
4
8
3
6
6
2
12
6
6
6
12
3
6
8
14
10
5
13
6
2
13
5
6
1
7
6
6
6
1
4
6
7
6

Артикул

Название

Примечание

Количество

1

89500409420

SUPPORT

2шт.

2

8900116836

REAR VIEW MIRROR

ASSY-MOTOR-HEATED

2шт.

Include Ref. 4

1шт.

3

8900116838

REAR VIEW MIRROR

HEATED

2шт.

Includes Ref. : 5

1шт.

4

8900958137

COVER

2шт.

5

8900958235

COVER

2шт.

6

8900116878

KIT

FIXING MIRROR

4шт.

7

8900118223

BOLT,M12 x 30mm

M12 x 30

4шт.

8

8900118202

NUT

M12

4шт.

9

89500409459

WIRE HARNESS

1шт.

10

89500409461

WIRE HARNESS

RH MIRROR

1шт.

11

89500409462

WIRE HARNESS

LH MIRROR

1шт.

12

8900046704

GROMMET

2шт.

13

8900122469

GROMMET

2шт.

14

8900184223

HOSE CLAMP

1шт.

Выбрано товаров: 16
