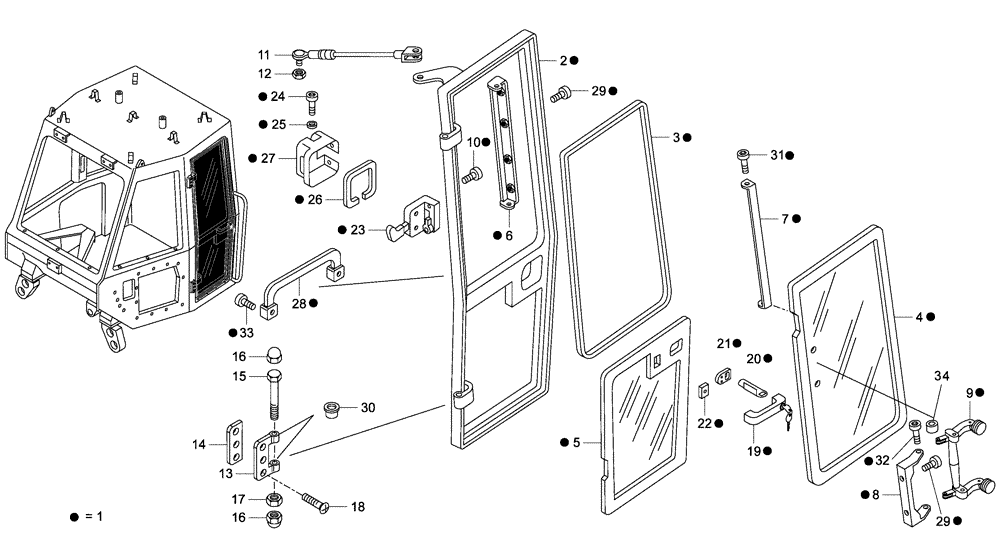

Запчасти Case 335 (51A00001290[001]) - DRIVER CAB - DOOR (87365953) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

8900132893

DOOR

1шт.

Consist Ref. 2 To 10, 19 To 29, 31 To 34

1шт.

2

8900132894

WINDOW FRAME

1шт.

3

8900132895

GASKET

1шт.

4

8900132897

GLASS

UPPER

1шт.

5

8900132898

GLASS

LOW

1шт.

6

8900132887

SUPPORT

HINGE

1шт.

7

8900132899

HINGE

1шт.

8

8900132886

SUPPORT

HANDLE

1шт.

9

8900132856

HANDLE

GLASS WINDOW

1шт.

10

8900957940

SCREW

M6 x 25; Replaces 8900049743 Bolt

2шт.

11

8900132946

CYLINDER

1шт.

12

8917785811

LOCK NUT

M8 ZNC

1шт.

13

8900132900

HINGE

2шт.

14

8900132904

SHIM

HINGE

2шт.

15

8900955229

SCREW

M10 x 120; Replaces 8916609024 Screw

2шт.

16

8900132929

CAP

4шт.

17

8900009063

NUT

M10 ZNC

2шт.

18

8917035704

SCREW

M10 x 30

6шт.

19

8900132902

HANDLE

1шт.

20

8900132907

ROD

1шт.

22

8900132906

SHIM

1шт.

23

8900132908

LOCK

For Striker Plate See Fig 51A00001287 (001)

1шт.

24

8900133885

BOLT,M5 x 20mm

M5 x 16

3шт.

25

8900132672

HYDRAULIC VALVE

3шт.

26

8900132896

GASKET

1шт.

27

8900132911

COVER

LOCK

1шт.

28

8900132903

HANDLE

1шт.

29

8900003222

BOLT,M6 x 20mm

M6 x 20

6шт.

30

8900132948

BUSHING

4шт.

31

8900012041

BOLT

2шт.

32

8998340532

SCREW,M4 x 10mm

M4 x 10; Replaces 890012041 Bolt Used On Some Models

2шт.

33

8900142213

SCREW

M6 x 20

2шт.

34

8998340533

THREADED INSERT

If Used

2шт.

35

8998340843

REPAIR KIT

KIT, DOOR LATCH; Incl 23 - 27

1шт.

36

8998340844

REPAIR KIT

KIT, DOOR HANDLE; Incl 19 - 22

1шт.

37

8998340845

REPAIR KIT

KIT, HINGE; Incl 6 - 7, 29, 31

1шт.

38

8998340846

REPAIR KIT

KIT, HINGE; Incl 13 - 18, 30

2шт.

39

8998340847

REPAIR KIT

KIT, HANDLE; Incl 8 - 9, 29, 32

1шт.
