(10B00000002[001]) - REPAIR KITS, AIR COMPRESSOR ASSY (P.I.N. HHD0330BN7PG5700 AND AFTER) (41211340)

Запчасти Case 330B (10B00000002[001]) - REPAIR KITS, AIR COMPRESSOR ASSY (P.I.N. HHD0330BN7PG5700 AND AFTER) (41211340) (01) - ENGINE

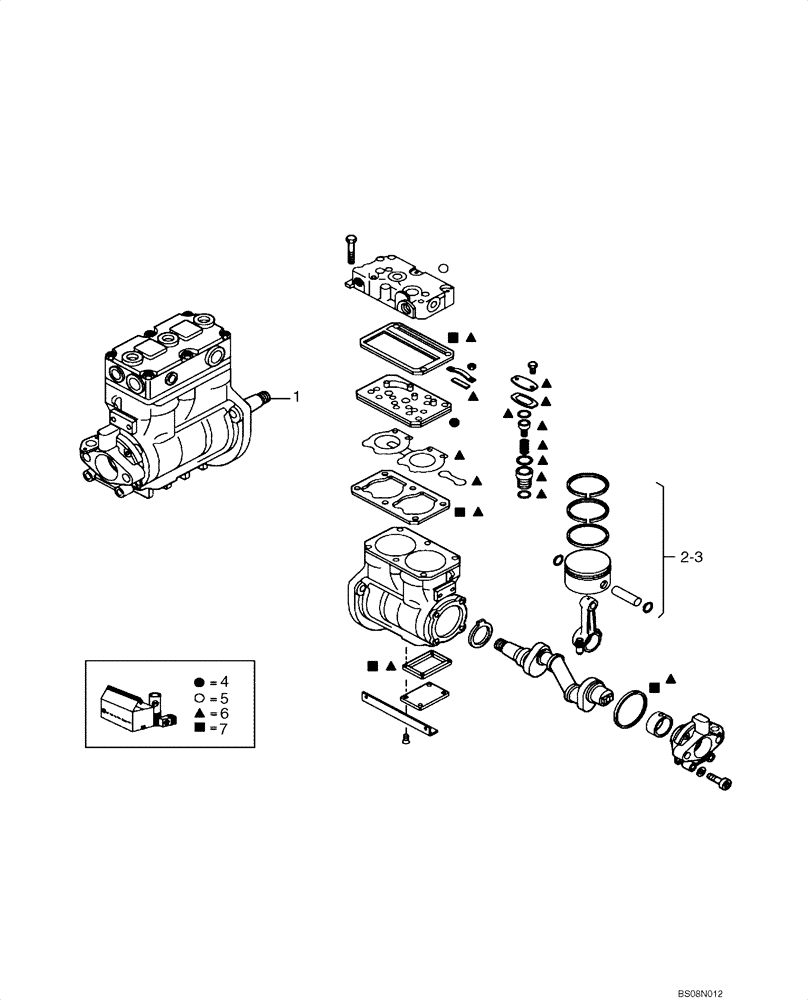

Схема запчастей Case 330B - (10B00000002[001]) - REPAIR KITS, AIR COMPRESSOR ASSY (P.I.N. HHD0330BN7PG5700 AND AFTER) (41211340) (01) - ENGINE
5
3
2
7
6
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Repair Kits - Air Compressor Assembly (41211340)

1шт.

2

42549147

REPAIR KIT

1шт.

3

42549148

REPAIR KIT

1шт.

4

42549149

REPAIR KIT

1шт.

5

42549152

HOUSING

1шт.

6

42549150

REPAIR KIT

1шт.

7

42549151

REPAIR KIT

1шт.
