(10A00000692[001]) - FUEL SYSTEM (UNTIL P.I.N. HHD0330BN7PG56999) (87557295)

Запчасти Case 330B (10A00000692[001]) - FUEL SYSTEM (UNTIL P.I.N. HHD0330BN7PG56999) (87557295) (01) - ENGINE

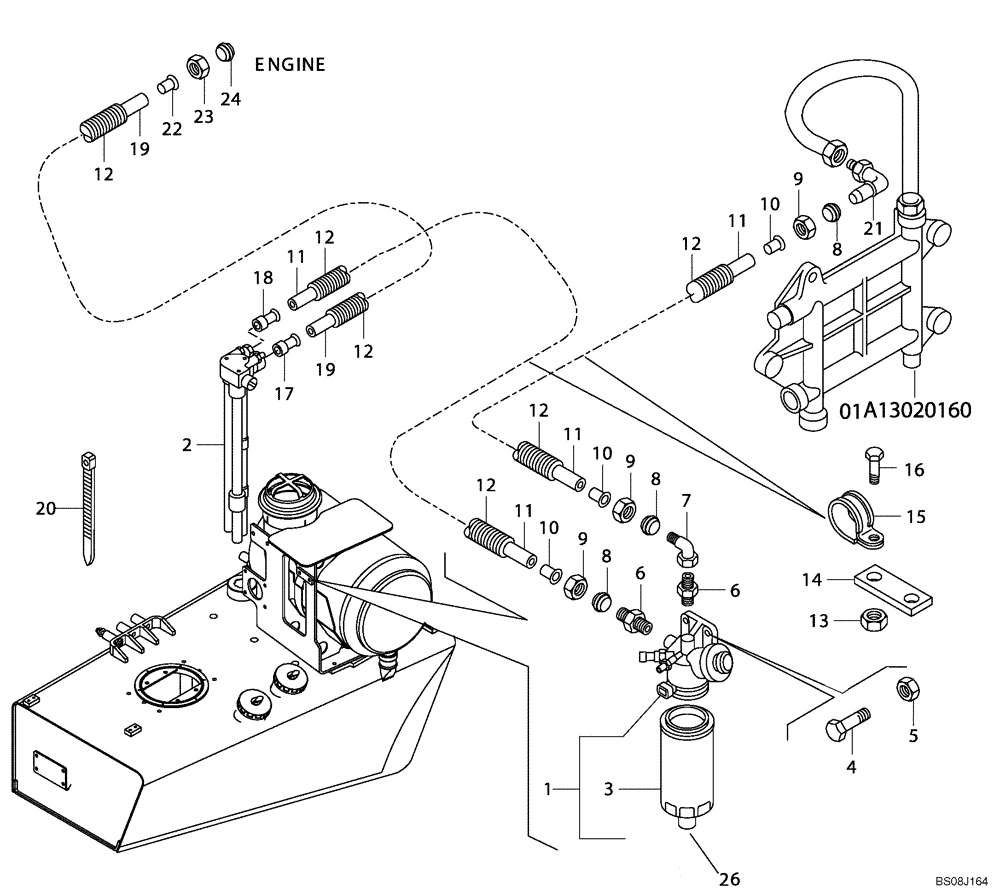

Схема запчастей Case 330B - (10A00000692[001]) - FUEL SYSTEM (UNTIL P.I.N. HHD0330BN7PG56999) (87557295) (01) - ENGINE
17
10
3
12
8
11
01a13020160
12
12
4
11
5
26
11
21
9
8
6
6
16
10
9
9
2
12
7
8
10
1
15
5
19
18
22
23
12
19
20
11
12
24
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89504082415

FILTER

1шт.

Include(s) 3

1шт.

2

8941042966

SENDER UNIT

Replaces 8941042966 Fuel level Sender

1шт.

3

8900132510

FUEL FILTER

1шт.

4

16587625

BOLT,M10 x 50mm

M10 x 50; Replaces 8900115590 Bolt M10 x 50 Used On Some Models

2шт.

5

8900140591

FLANGE NUT

2шт.

6

8900125758

BANJO BOLT

D.12-M14X1.5-M18X1.5

2шт.

7

8900141347

HYD CONNECTOR

1шт.

8

8900141464

SHIM

D.12

3шт.

9

8900141054

NUT

M18 x 1.5

3шт.

10

8900150482

BUSHING

D.12 x 1.5

3шт.

11

8900095388

FUEL HOSE

4шт.

12

8900095201

TUBE

1шт.

Order Length

1шт.

13

8900124675

NUT

Qty Was 1

1-2шт.

14

89500405864

PLATE

1шт.

15

8900142221

SUPPORT

Qty Was 1

1-2шт.

16

8900116551

BOLT,M6 x 16mm

M6 x 16; Qty Was 1

1-2шт.

17

8900125757

CONNECTION

1шт.

18

8900125756

CONNECTION

1шт.

19

8900095212

PLASTIC-RUBBER TUBE

1шт.

Order Length

1шт.

20

8900150511

COLLAR

1шт.

21

8916509214

CONNECTION

1шт.

22

8900125754

BUSHING

1шт.

23

8916506815

PIPE UNION NUT

Replaces 8900108070 Nut Union

1шт.

24

8900125755

INSERT

1шт.

25

8900176147

BRACKET

If Used; "L" Shaped Not Illustrated; Use With Items 13, 15, 16

1шт.

26

8942540204

SENSOR

If Used

1шт.
