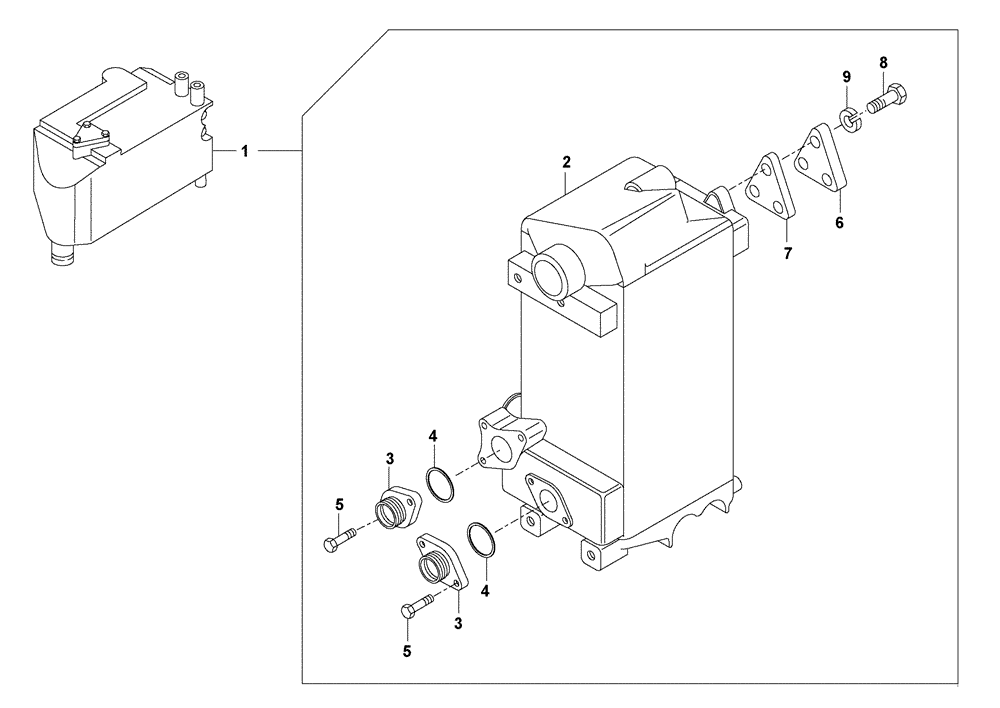

Запчасти Case 330B (05B00000012[001]) - COOLER ASSY (89500411763) (01) - ENGINE

1

NS

NOT SERVICED

1шт.

2

8900132660

HEAT EXCHANGER

Replaces 8900118873 Heat Exchanger

1шт.

3

8900118889

FITTING

2шт.

4

8900117503

THRUST RING

2шт.

5

8900117523

BOLT,M8 x 28mm

M8 x 28

4шт.

6

89500409134

COVER

1шт.

7

89500409135

GASKET

1шт.

8

8900140738

BOLT

M8 x 20

3шт.

9

8900956220

LOCK WASHER

3шт.
