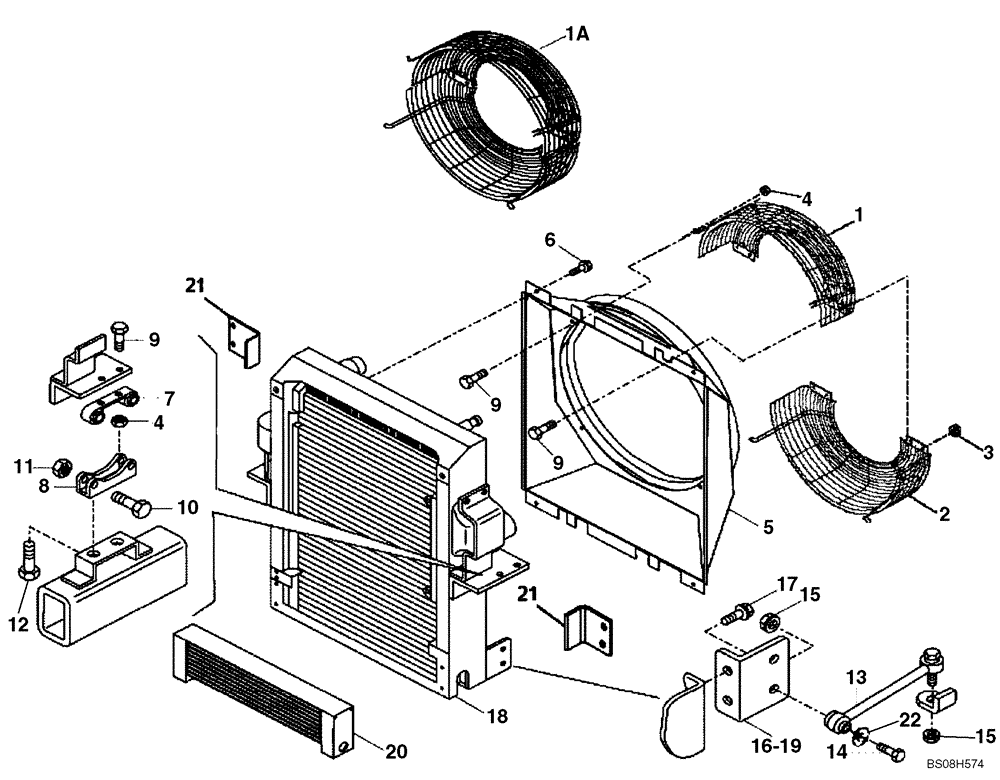

Запчасти Case 330B (04A00000672[001]) - RADIATOR (87556607) (01) - ENGINE

1

8900134935

SHIELD

If Used

1шт.

1a

89500421269

SHIELD

If Used

1шт.

2

8900134936

SHIELD

If Used

1шт.

3

8900115122

NUT

If Used

4шт.

4

8900124670

NUT

M10; Qty Was 8

6-8шт.

5

89500421240

SHROUD

Replaces 89500415238 Shroud

1шт.

6

8916597424

BOLT

M10 x 16

4шт.

7

8900110483

SEAT/SLOT

2шт.

8

8900110485

BRACKET

2шт.

9

8918139525

SCREW,M10 x 30mm

M10 x 30; Replaces 8900115589 Bolt; Qty Was 4

4-8шт.

10

8900045521

BOLT

M14 x 80

4шт.

11

8900101945

LOCK NUT

8шт.

12

8916288524

BOLT

M10 x 1.25 x 30

4шт.

13

8941001646

TIE-ROD

2шт.

14

8900056265

BOLT

M8 x 40

2шт.

15

8900140590

NUT

Qty Was 5

2-5шт.

16

89500421454

BRACKET

Replaces 89500417288 Bracket

1шт.

17

8900121098

BOLT,M8 x 16mm

M8 x 16; Qty Was 4

4-8шт.

18

89500426079

RADIATOR

W/Condensor; Replaces 8998340822 And 89500421536 And 89500418912 Radiator Assy's

1шт.

REF

INSTRUCTION

See Figure 04B00000043 For Service Breakdown

1шт.

19

89500421455

BRACKET

Replaces 8950041788 Bracket

1шт.

20

89500431328

HEAT EXCHANGER

If Used; Replaces 89500420641 Radiator

1шт.

21

89500431523

BRACKET

If Used

2шт.

22

8904598124

COLLAR

If Used

2шт.
