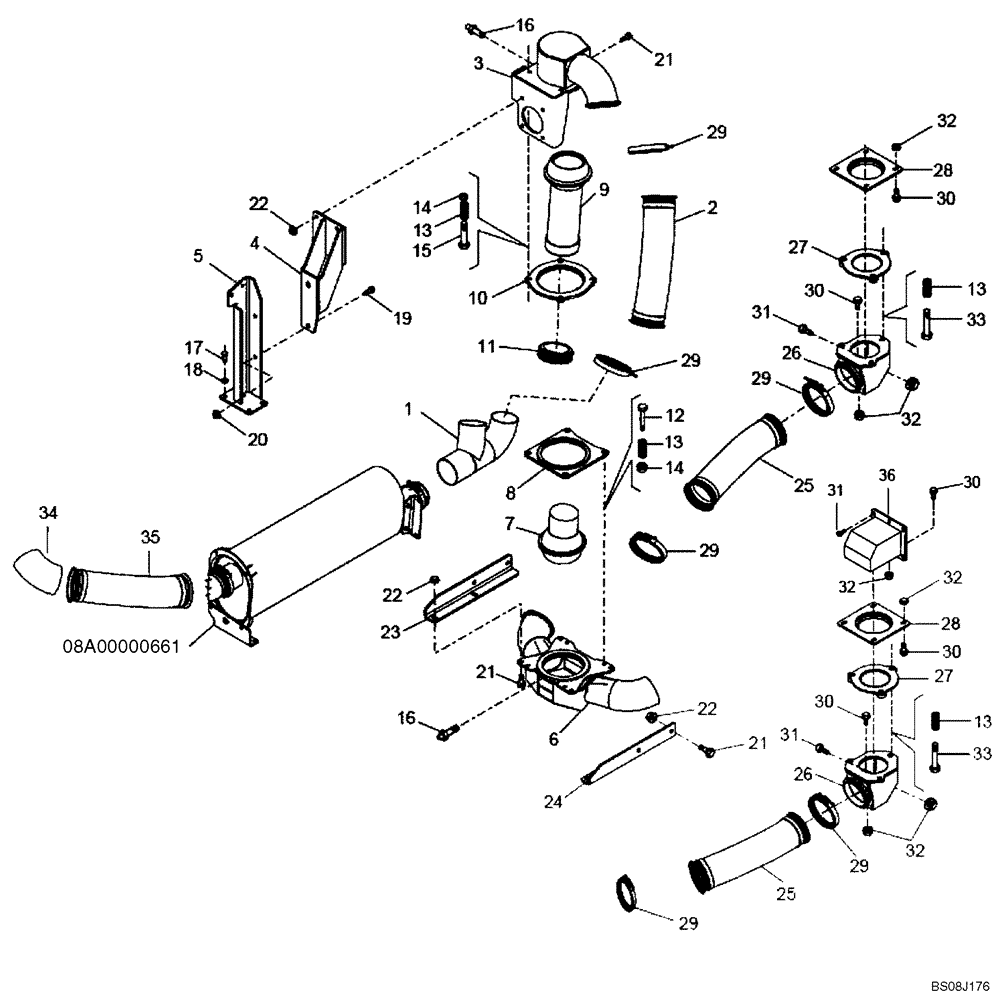

Запчасти Case 330B (72A00030736[001]) - HEATING KIT, DUMP BODY (8998341354) (19) - OPTIONS

8998341354

FIP KIT

Includes Items 1-35

1шт.

1

89500416278

EXHAUST SYSTEM PIPE

1шт.

2

89500430371

EXHAUST SYSTEM PIPE

1шт.

3

89500416312

ELBOW-CONNECTION

ELBOW-CONECTION

1шт.

4

89500409872

SUPPORT

1шт.

5

89500409865

SUPPORT

1шт.

6

89500416305

EXHAUST MANIFOLD

1шт.

7

89500409899

ADAPTER

EXHAUST

1шт.

8

89500409827

FLANGE

1шт.

9

89500409894

EXHAUST SYSTEM PIPE

1шт.

10

89500409849

FLANGE

1шт.

11

89500414064

CLAMP

1шт.

12

8900011999

BOLT

M12 x 80

4шт.

13

89500401953

SPRING

14шт.

14

8900055100

SPECIAL NUT

SPL

8шт.

15

8900955261

BOLT

4шт.

16

8900100865

KEY

FITTING, GREASE

2шт.

17

8900140406

BOLT

M12 x 1.75 x 30

4шт.

18

8900115529

LOCK WASHER

4шт.

19

8900135062

SCREW,M14 x 40mm

M14 x 40

2шт.

20

8900135059

NUT

2шт.

21

8916588225

BOLT,M12 x 40mm

M12 x 40; Replaces 8916588224 Bolt M12 x 40 Used On Some Models

12шт.

22

8900118202

NUT

12шт.

23

89500409845

SUPPORT

RH

1шт.

24

89500409844

SUPPORT

LH

1шт.

25

89500430372

EXHAUST SYSTEM PIPE

FLEXIBLE

2шт.

26

89500416503

ELBOW-CONNECTION

ELBOW-CONECTION EXHAUST

2шт.

27

89500416520

FLANGE

2шт.

28

89500416493

PLATE

2шт.

29

8900185213

COLLAR

Qty Was 10

6-10шт.

30

8918139525

SCREW,M10 x 30mm

M10 x 30

16шт.

31

8900124669

BOLT

M10 x 40; Qty Was 2

2-12шт.

32

8900140777

NUT

18шт.

33

89500403647

BOLT

6шт.

34

89500414939

EXHAUST SYSTEM PIPE

1шт.

35

89500430370

EXHAUST SYSTEM PIPE

FLEXIBLE

1шт.

36

89500425234

HOUSING

HOUSING EXHAUST BOX, Bolt On

2шт.
