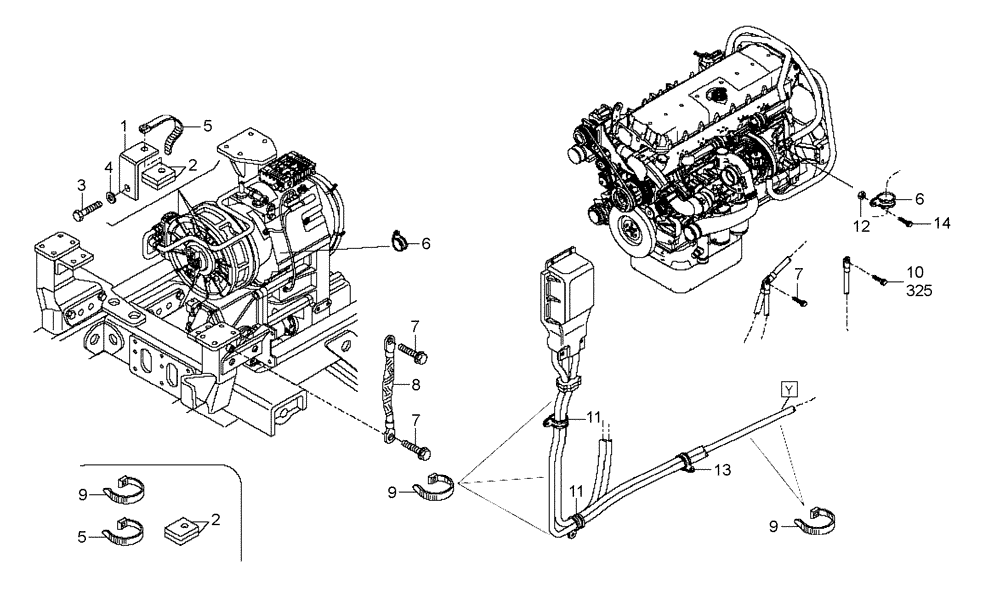

Запчасти Case 330B (67A02011463[001]) - GROUND CABLE AND BRACKET (87584150) (13) - Electrical System / Decals

1

8900174917

SUPPORT

3шт.

2

8900150391

PAD

6шт.

3

8900006132

BOLT,M16 x 1.5 x 35mm

M16 x 1.5 x 35

3шт.

4

8917095714

COLLAR

3шт.

5

8900150511

COLLAR

1шт.

6

8900049243

COLLAR

2шт.

7

8900121586

SCREW,M12 x 25mm

M12 x 25; Qty Was 2

2-3шт.

8

8900189059

CABLE

1шт.

9

8900184223

HOSE CLAMP

1шт.

10

8900121098

BOLT,M8 x 16mm

M6 x 16; Qty Was 11

10-11шт.

11

8900102937

COLLAR

2шт.

12

8900115122

NUT

1шт.

13

8900106732

COLLAR

Qty Was 2

1-2шт.

14

8900115555

BOLT,M8 x 30mm

M8 x 30; Qty Was 5

2-5шт.
