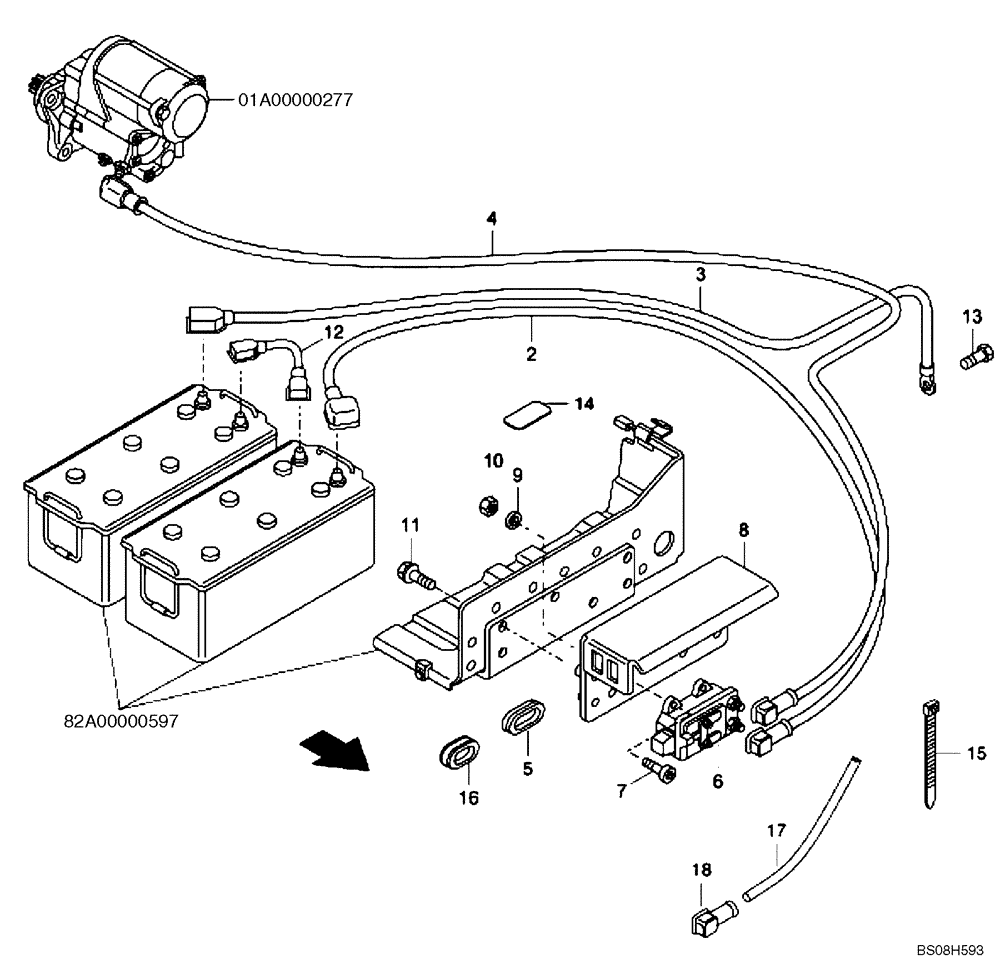

Запчасти Case 330B (67A00011462[001]) - BATTERY CUT-OUT CIRCUIT (87581776) (13) - Electrical System / Decals

2

89500405253

CABLE

1шт.

3

8900189067

CABLE

1шт.

4

89500409331

CABLE

1шт.

5

8900122408

GASKET

2шт.

6

8900183704

BATTERY CUT-OUT

1шт.

7

8900003224

BOLT,M8 x 30mm

M8 x 30

4шт.

8

89500408943

SUPPORT

1шт.

9

8900956220

LOCK WASHER

4шт.

10

8900115122

NUT

4шт.

11

8900115555

BOLT,M8 x 30mm

M8 x 30

6шт.

12

89500409793

CABLE

Battery To Battery

1шт.

13

8900121098

BOLT,M8 x 16mm

M8 x 16

1шт.

14

89500409508

PLUG

2шт.

15

8900184223

HOSE CLAMP

10шт.

16

8900122409

GASKET

1шт.

17

89500409332

CABLE

Ground Engine To Frame

1шт.

18

8941260173

PROTECTOR

PROTECTOR, Cable Terminal

2шт.
