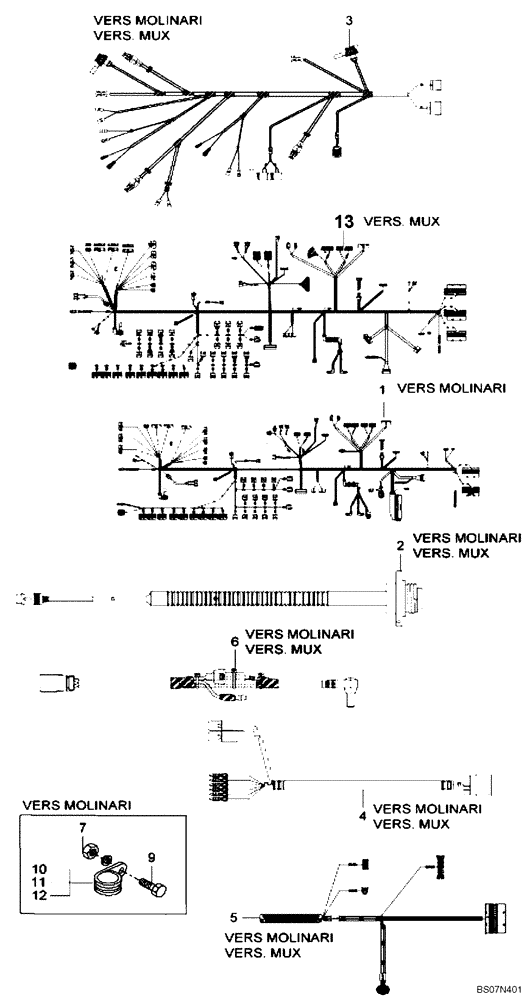

Запчасти Case 330B (67A00001645[001]) - WIRE HARNESS, CAB (87518746) (13) - Electrical System / Decals

1

89500415440

WIRE HARNESS

Cab

1шт.

Until S/N HHD0330BNN7PG56092

1шт.

2

89500408935

WIRE HARNESS

Monitor

1шт.

3

8900192867

WIRE HARNESS

Ceiling Light

1шт.

4

89500405070

WIRE HARNESS

Input Fleet-Link

1шт.

5

89500423014

WIRE HARNESS

HARNESS, WIRE TRANSMISSION CAB; Replaces 89500408930 Harness, Wire Used On Some Models

1шт.

6

89500403276

WIRE HARNESS

Input Monitor

1шт.

7

8900009278

NUT

2шт.

8

8900127601

LOCK WASHER

2шт.

9

8900125013

SCREW,M3 x 16mm

2шт.

10

8900106732

COLLAR

4шт.

11

8900105517

COLLAR

2шт.

12

8900163658

COLLAR

3шт.

13

89500423497

WIRE HARNESS

CAB SIMPLE MUX; If Used

1шт.

After S/N HHD0330BNN7PG56093

1шт.
