(33A00000791[001]) - BREATHER, INTERMEDIATE AXLE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84192580)

Запчасти Case 330B (33A00000791[001]) - BREATHER, INTERMEDIATE AXLE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84192580) (11) - AXLES/WHEELS

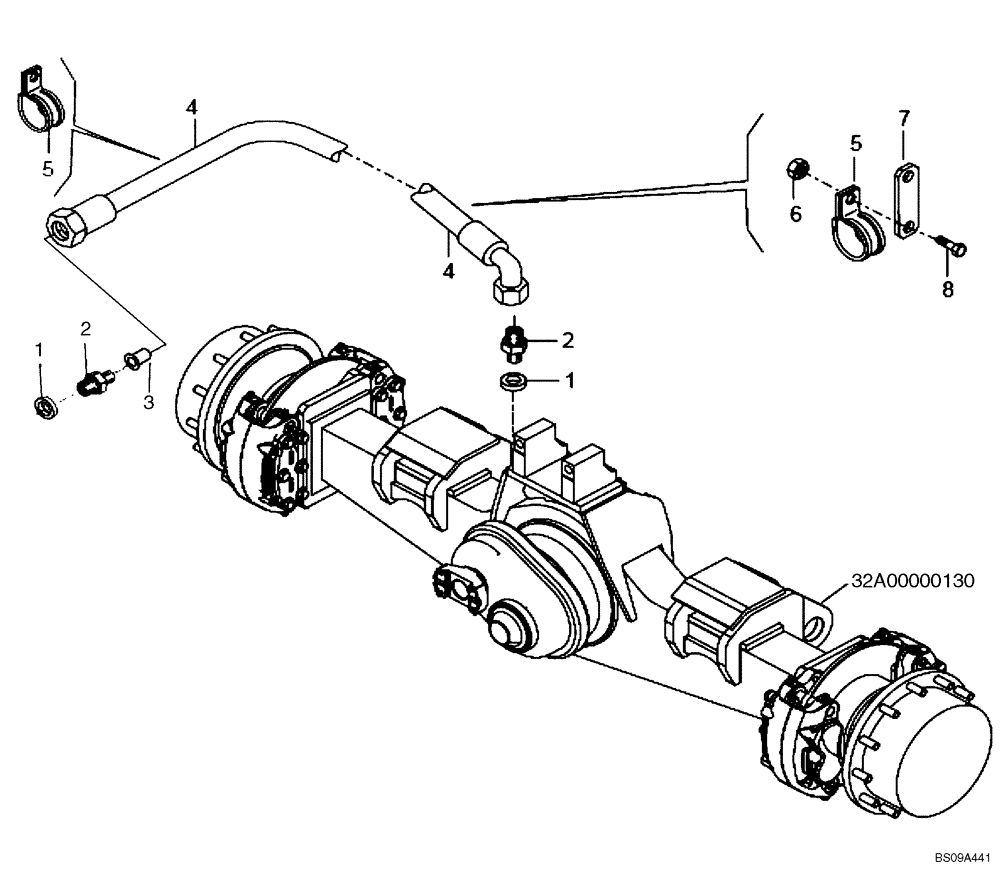

Схема запчастей Case 330B - (33A00000791[001]) - BREATHER, INTERMEDIATE AXLE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84192580) (11) - AXLES/WHEELS
4
32a00000130
7
3
6
5
8
2
4
1
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Breather, Intermediate Axle (84192580)

1шт.

1

8900115474

COPPER SEAL

2шт.

2

8900141350

HYD CONNECTOR

2шт.

3

89500401611

BUSHING

1шт.

4

89500415569

HOSE ASSY.

1шт.

5

8900103926

COLLAR

2шт.

6

8900140611

NUT

1шт.

7

89500405864

PLATE

1шт.

8

8900140610

BOLT

M6 x 20

1шт.
