(33A00000141[001]) - SECTION INDEX, REAR AXLE ASSY W/WET BRAKE (89500424757)

Запчасти Case 330B (33A00000141[001]) - SECTION INDEX, REAR AXLE ASSY W/WET BRAKE (89500424757) (11) - AXLES/WHEELS

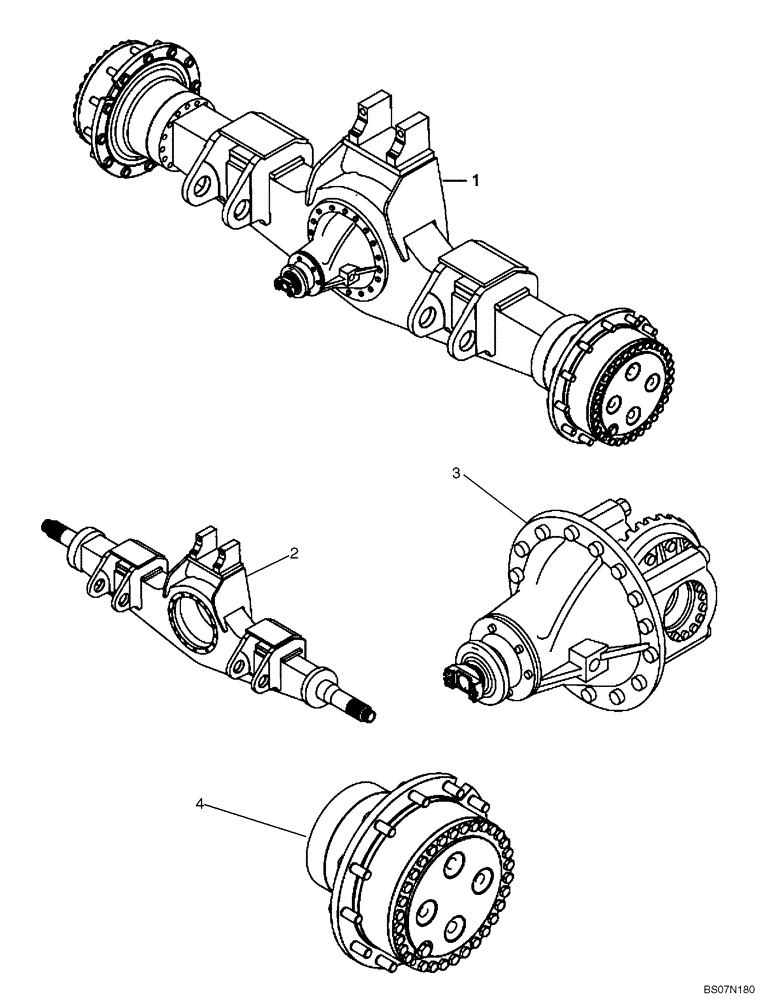

Схема запчастей Case 330B - (33A00000141[001]) - SECTION INDEX, REAR AXLE ASSY W/WET BRAKE (89500424757) (11) - AXLES/WHEELS
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500424757

DRIVE AXLE

ASSY, WET BRAKE; Include(s) 2 -4

1шт.

2

NSS

NOT SOLD SEPARAT

Rear Axle Housing (87697292)

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000766 (001) For Service Breakdown

1шт.

3

8998340694

DIFFERENTIAL ASSY

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000768 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Reduction Gear Wet Brake (87697325)

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000767 (001) For Service Breakdown

1шт.
