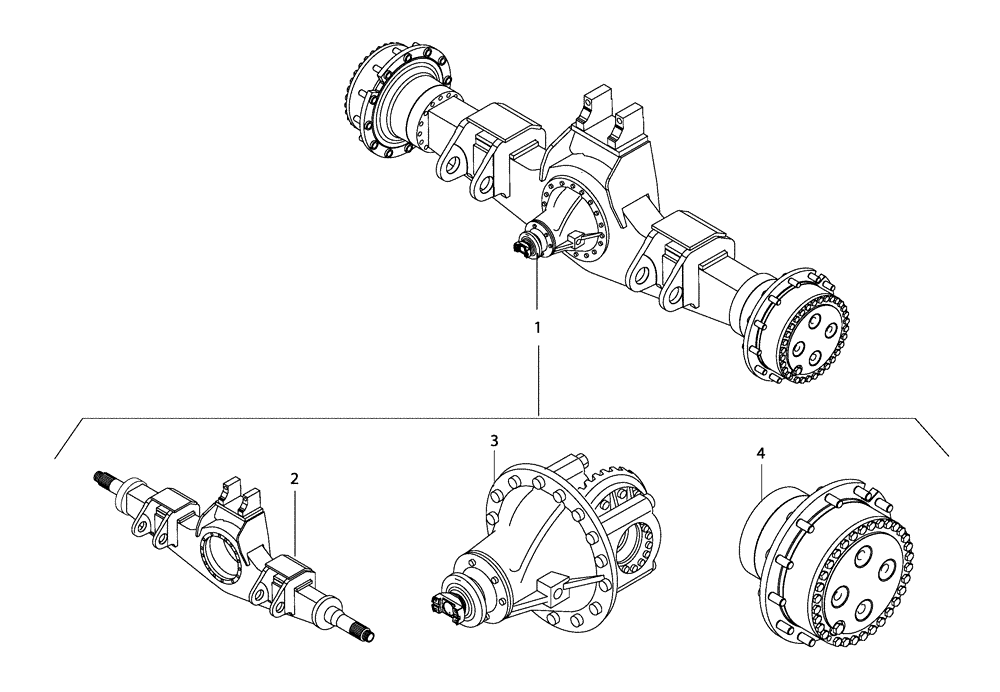

Запчасти Case 330B (33A00000057[001]) - SECTION INDEX, REAR AXLE ASSY W/WET BRAKE (89500416886) (11) - AXLES/WHEELS

1

89500416886

AXLE

ASSY ,REAR; Includes 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Housing (87517008)

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000729 (001) For Service Breakdown

1шт.

3

8900134409

DIFFERENTIAL ASSY

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000731 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Reduction Gear (87517009)

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000730 (001) For Service Breakdown

1шт.
