(01A00000337[001]) - INJECTOR, FUEL SYSTEM (P.I.N. HHD0330BN7PG57000 AND AFTER) (84163277)

Запчасти Case 330B (01A00000337[001]) - INJECTOR, FUEL SYSTEM (P.I.N. HHD0330BN7PG57000 AND AFTER) (84163277) (01) - ENGINE

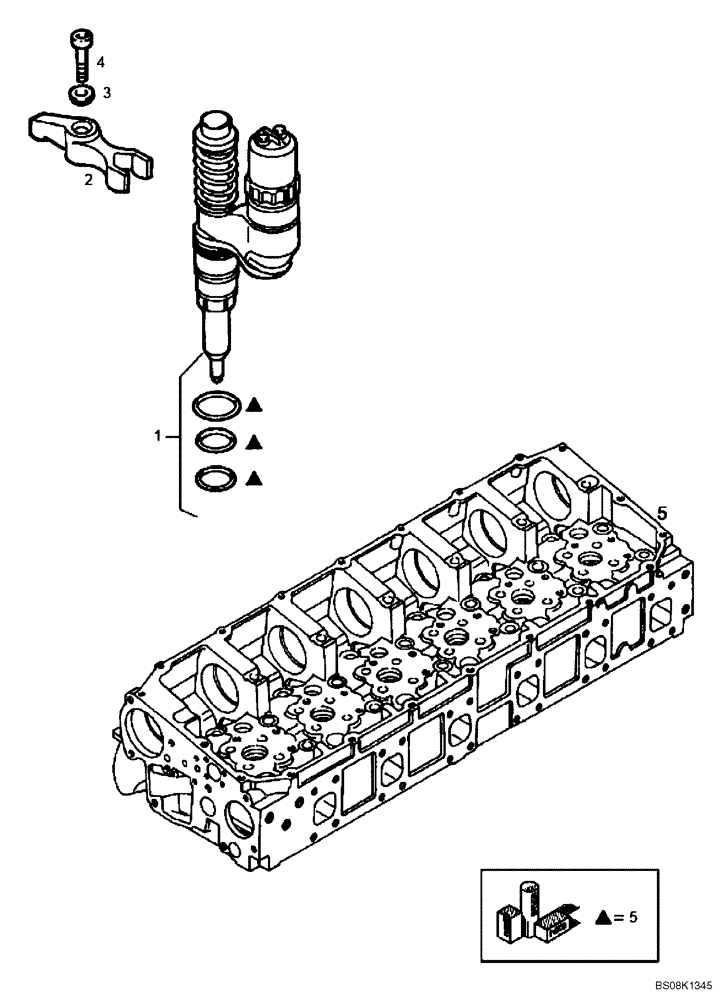

Схема запчастей Case 330B - (01A00000337[001]) - INJECTOR, FUEL SYSTEM (P.I.N. HHD0330BN7PG57000 AND AFTER) (84163277) (01) - ENGINE
5
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Injector, Fuel (84163277)

1шт.

1

504287106

FUEL SYSTEM INJECTOR

Iveco

6шт.

1

504287106R

REMAN-FUEL INJECTOR

Remanufactured Fuel System Injector

6шт.

1

504287106C

CORE-FUEL INJECTOR

Return Number

6шт.

2

99435006

BRACKET

Iveco

6шт.

3

99435007

LOCK WASHER

Iveco

6шт.

4

16707734

SCREW,M8 x 1.25 x 50mm

Iveco

6шт.

5

504140437

REPAIR KIT

6шт.
