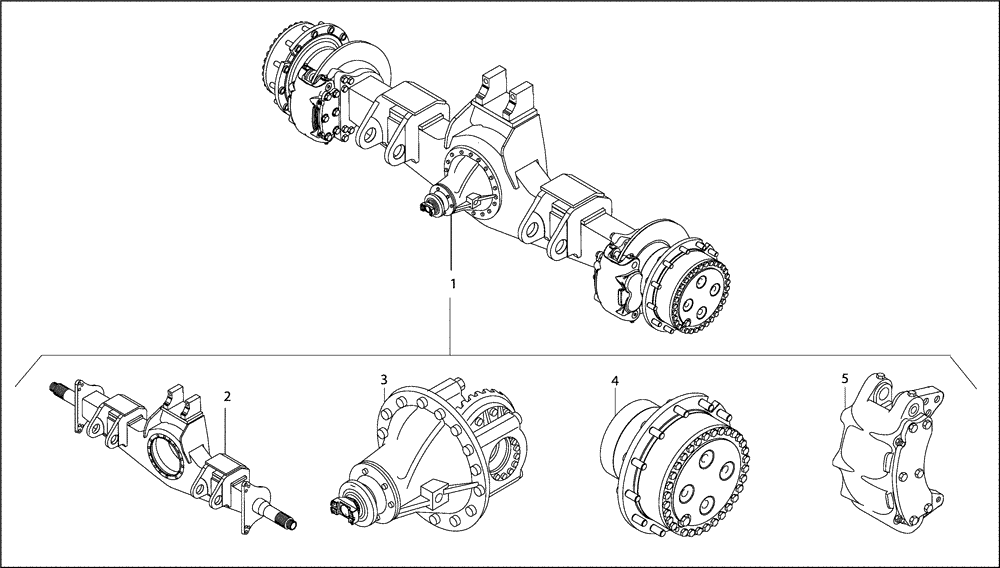

Запчасти Case 330B (33A00000056[001]) - SECTION INDEX, REAR AXLE ASSY W/DRY BRAKE ( 89500417908) (11) - AXLES/WHEELS

1

89500417908

AXLE

Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Axle Housing (87516544) Qty Was 2

1-2шт.

REF

INSTRUCTION

See Figure(s) 33A00000725 (001) For Service Breakdown

1шт.

3

8900134350

DIFFERENTIAL ASSY

Qty Was 3

1-3шт.

REF

INSTRUCTION

See Figure(s) 33A00000726 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Reduction Gear (87516545) Qty Was 4

1-4шт.

REF

INSTRUCTION

See Figure(s) 33A00000727 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

Brake Assy (87515680) Qty Was 5

2-5шт.

REF

INSTRUCTION

See Figure(s) 33A00000728 (001) For Service Breakdown

1шт.
