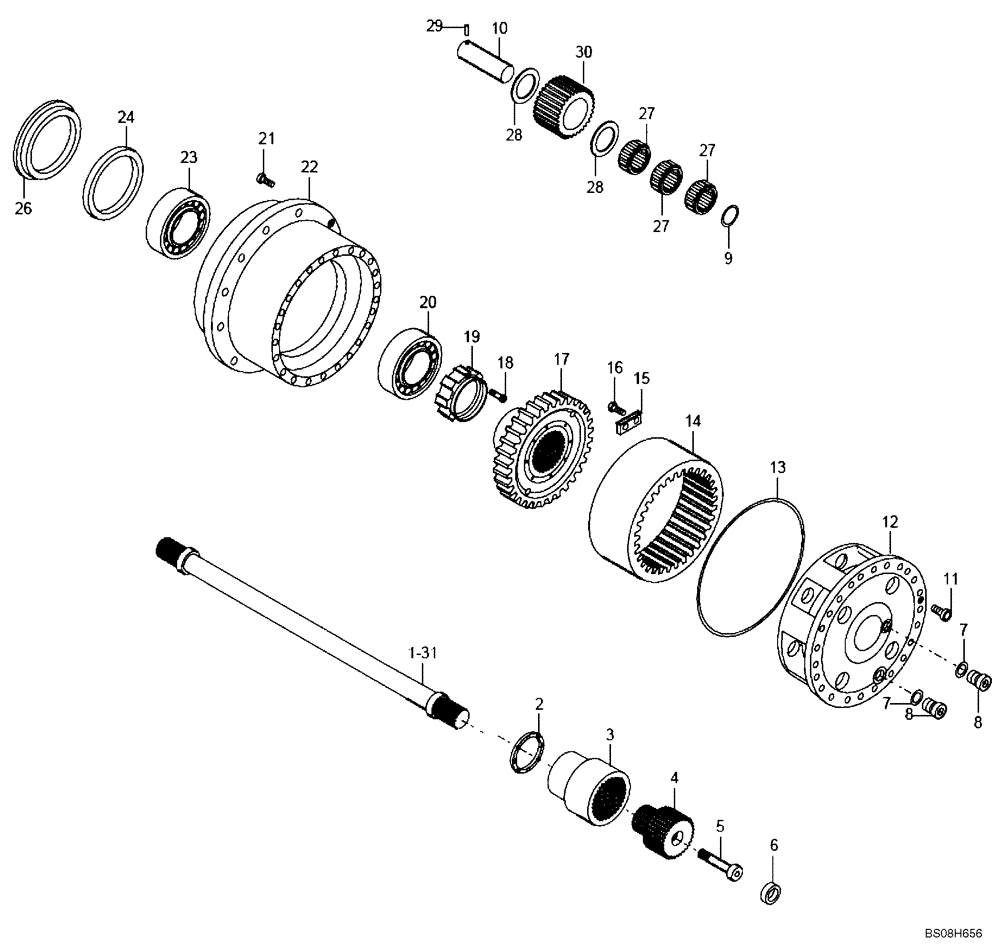

Запчасти Case 330B (32A00000676[001]) - WHEEL REDUCTON GEAR, INTERMEDIATE AXLE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84147720) (11) - AXLES/WHEELS

REF

INSTRUCTION

Wheel Reduction Gear (84147720)

1шт.

1

8998340666

HALF SHAFT

Axle

1шт.

2

8900134341

DISC

2шт.

3

8900134346

SLEEVE

2шт.

4

8900134349

GEAR

2шт.

5

8900133449

SCREW,M16 x 120mm

M16 x 20

2шт.

6

8900133448

WASHER

2шт.

7

8900133514

GASKET

4шт.

8

8900133455

PLUG

4шт.

9

8900133476

RING

8шт.

10

8900134275

PIN

8шт.

11

8900134249

SCREW,M14 x 40mm

M14 x 40

48шт.

12

8900134248

FINAL DRIVE HOUSING

2шт.

13

8900134250

SEALING RING

SEALRING

2шт.

14

8900134251

RING GEAR

2шт.

15

8900134252

PLATE

6шт.

16

8900134253

BOLT

M6 x 12

12шт.

17

8900134254

GEAR

2шт.

18

8900133465

SCREW,M10 x 10mm

M10 x 10

2шт.

19

8900134256

RING

Fastening

2шт.

20

8900133470

BEARING

2шт.

21

8900134360

BOLT

24шт.

22

8900134257

HUB

Wheel

2шт.

23

8900134259

BEARING

2шт.

24

8998340674

RING

2шт.

26

8900134261

RING

Retaining

2шт.

27

8900133477

NEEDLE BEARING

24шт.

28

8900133478

WASHER

16шт.

29

8900134276

PIN

8шт.

30

8900134274

SUN GEAR

8шт.

31

8998340667

HALF SHAFT

Axle

1шт.
