(32A00000674[001]) - HOUSING, INTERMEDIATE AXLE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84147473)

Запчасти Case 330B (32A00000674[001]) - HOUSING, INTERMEDIATE AXLE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84147473) (11) - AXLES/WHEELS

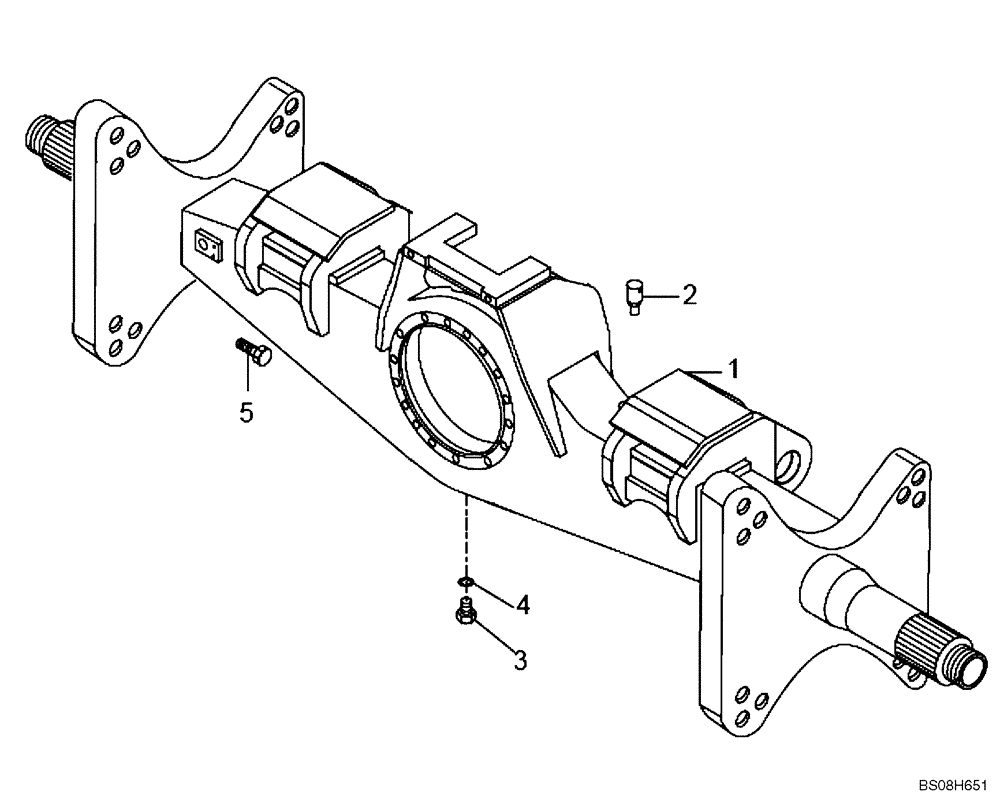

Схема запчастей Case 330B - (32A00000674[001]) - HOUSING, INTERMEDIATE AXLE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84147473) (11) - AXLES/WHEELS
2
1
5
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Intermediate Axle Housing (84147473)

1шт.

1

8998341541

AXLE HOUSING

Incl. Ref Items 2-5

1шт.

2

8900133513

BREATHER

1шт.

3

8900133514

GASKET

1шт.

4

8900133455

PLUG

1шт.

5

8998340668

SCREW

12шт.
