(01A00000336[001]) - LINES, COMPRESSOR COOLING (P.I.N. HHD0330BN7PG57000 AND AFTER) (84163256)

Запчасти Case 330B (01A00000336[001]) - LINES, COMPRESSOR COOLING (P.I.N. HHD0330BN7PG57000 AND AFTER) (84163256) (01) - ENGINE

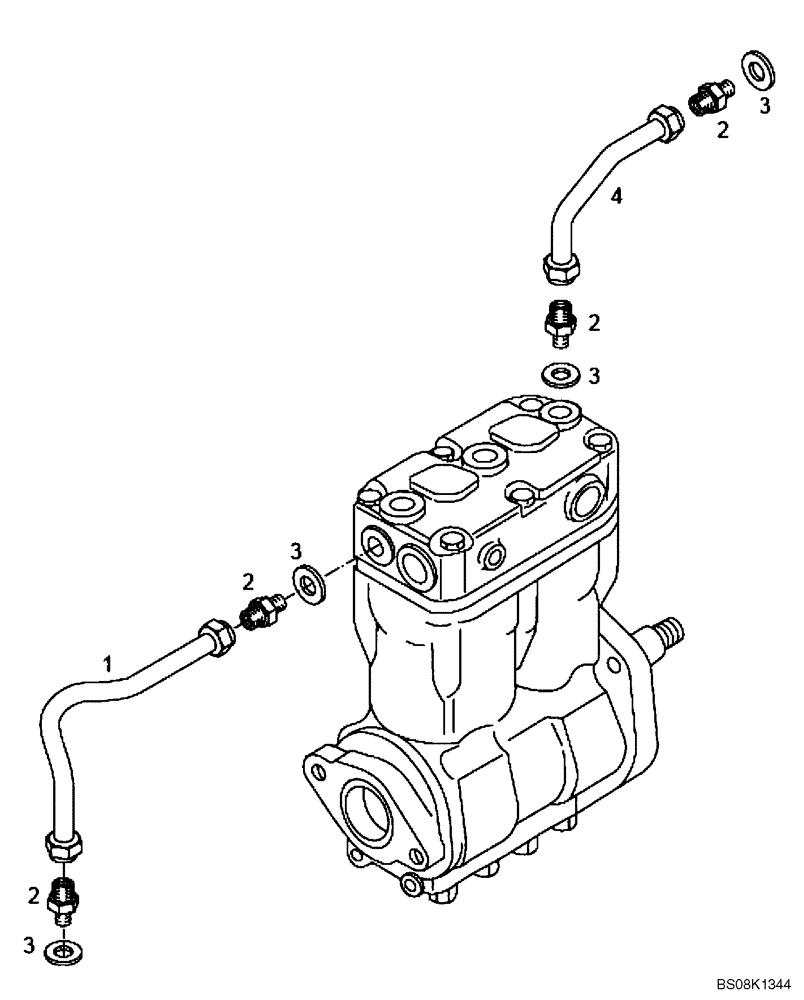

Схема запчастей Case 330B - (01A00000336[001]) - LINES, COMPRESSOR COOLING (P.I.N. HHD0330BN7PG57000 AND AFTER) (84163256) (01) - ENGINE
2
3
4
2
3
3
1
3
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Lines, Compressor Cooling (84163256)

1шт.

1

500354898

HYD TUBE

Iveco

1шт.

2

16500415

CONNECTION

Iveco

4шт.

3

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

4шт.

4

504044421

TUBE

1шт.
