(32A00000666[001]) - HOUSING, INTERMEDIATE AXLE (87682650)

Запчасти Case 330B (32A00000666[001]) - HOUSING, INTERMEDIATE AXLE (87682650) (11) - AXLES/WHEELS

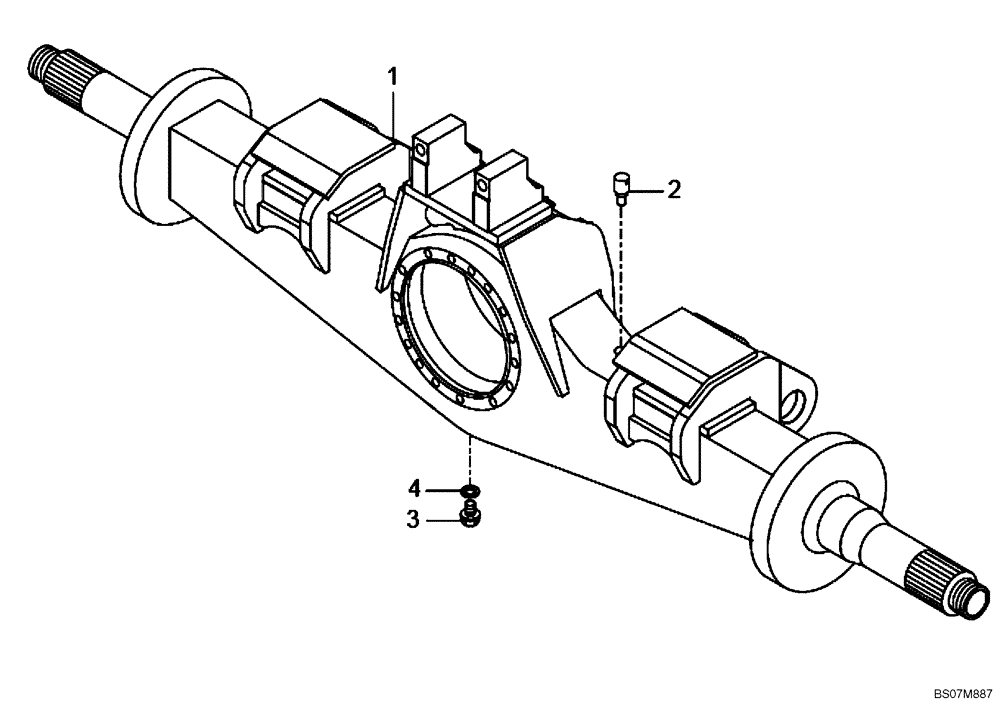

Схема запчастей Case 330B - (32A00000666[001]) - HOUSING, INTERMEDIATE AXLE (87682650) (11) - AXLES/WHEELS
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

AXLE HOUSING FOR USE WITH WET BRAKE; Include(s) 1 - 4

1шт.

1

8998340685

AXLE HOUSING

1шт.

2

8900133513

BREATHER

1шт.

3

8900133455

PLUG

1шт.

4

8900133514

GASKET

1шт.
