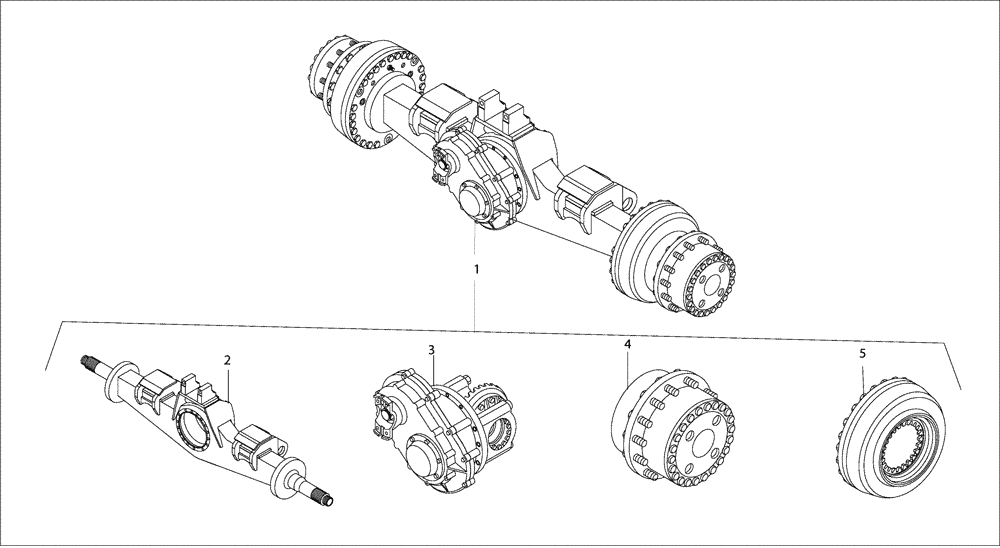

Запчасти Case 330B (32A00000121[001]) - SECTION INDEX, INTERMEDIATE AXLE ASSY W/WET BRAKE (89500417906) (11) - AXLES/WHEELS

1

89500417906

AXLE

Replaces 89500416912 Axle; Incl 2 -5

1шт.

2

NSS

NOT SOLD SEPARAT

Axle Housing (87516928)

1шт.

REF

INSTRUCTION

See Figure(s) 32A00000641 (001) For Service Breakdown

1шт.

3

8900134403

DIFFERENTIAL ASSY

1шт.

REF

INSTRUCTION

See Figure(s) 32A00000642 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Reduction Gear Assembly (87516929)

1шт.

REF

INSTRUCTION

See Figure(s) 32A00000643 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

Brake Assembly (87516799)

2шт.

REF

INSTRUCTION

See Figure(s) 32A00000644 (001) For Service Breakdown

1шт.
