(30A00000694[001]) - HOUSING, FRONT AXLE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84180631)

Запчасти Case 330B (30A00000694[001]) - HOUSING, FRONT AXLE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84180631) (11) - AXLES/WHEELS

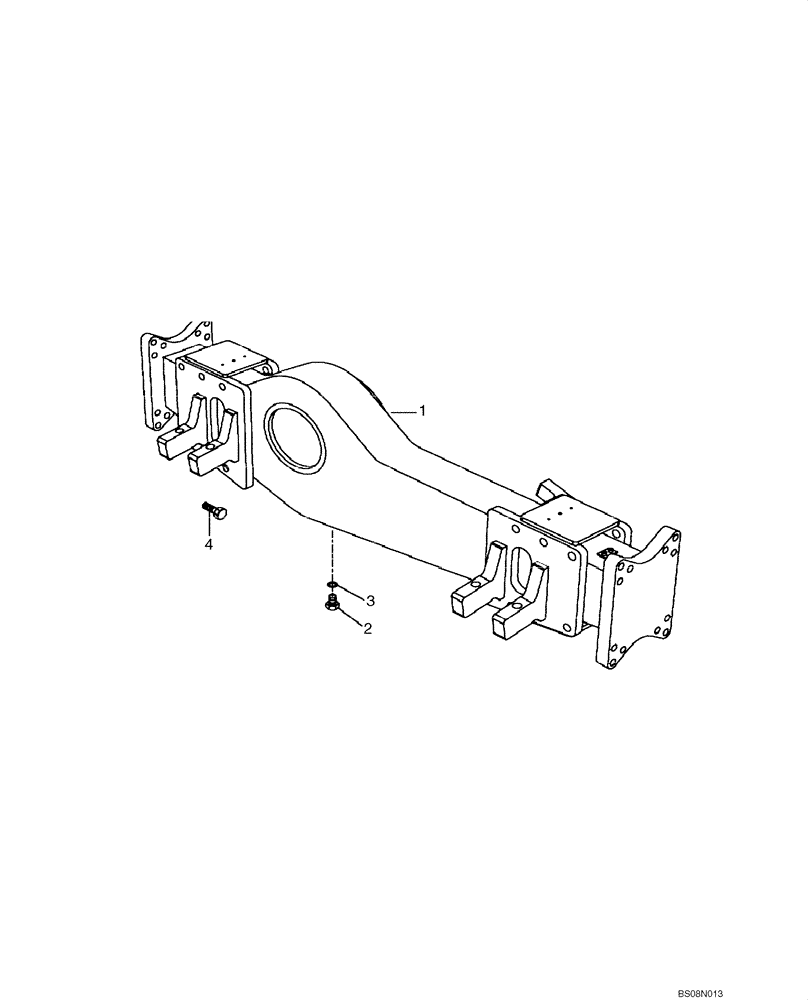

Схема запчастей Case 330B - (30A00000694[001]) - HOUSING, FRONT AXLE (P.I.N. HHD0330BN7PG57000 AND AFTER) (84180631) (11) - AXLES/WHEELS
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Housing, Front Axle (84180631)

1шт.

1

8998341995

AXLE HOUSING

1шт.

2

8900133514

GASKET

1шт.

3

8900133455

PLUG

1шт.

4

8998340668

SCREW

24шт.
