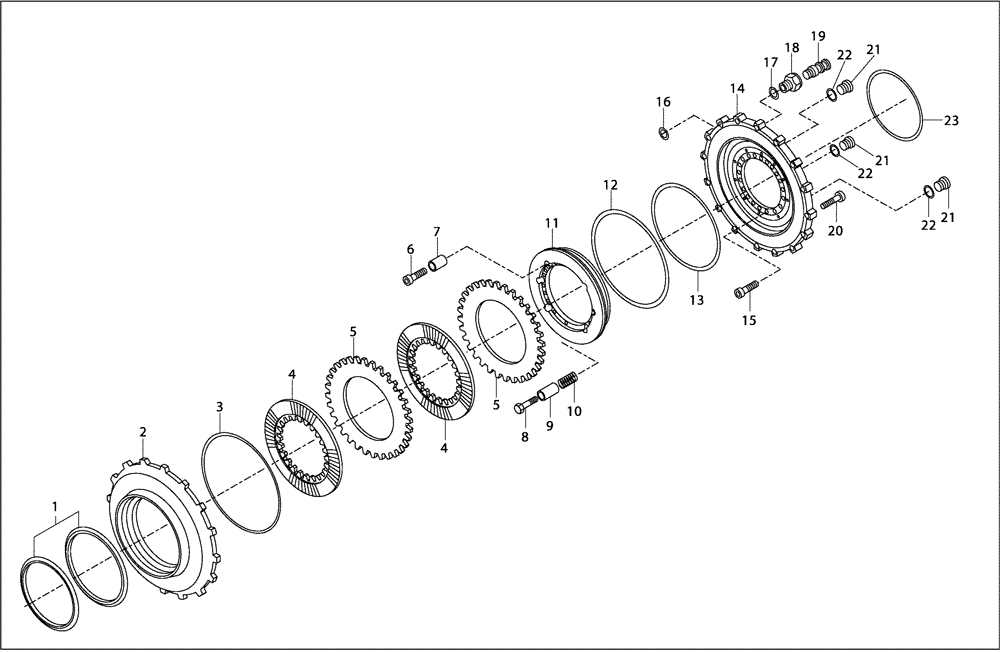

Запчасти Case 330B (30A00000666[001]) - BRAKE ASSY, FRONT WHEEL HUB W/WET BRAKE (87516799) (11) - AXLES/WHEELS

1

8900134379

GASKET

1шт.

2

8900134380

COVER

1шт.

3

8900134381

SEALING RING

SEALRING

1шт.

4

8998340680

DISC

DISC, Replaces 8900134382 Disc Used On Some Models

4шт.

5

8900134383

DISC

4шт.

6

8900134384

SCREW,M10 x 35mm

M10 x 35

2шт.

7

8900134385

BUSHING

2шт.

8

8900134386

BOLT

M6 x 40

8шт.

9

8900134387

BUSHING

8шт.

10

8900134388

COIL SPRING

8шт.

11

8900134389

PISTON

1шт.

12

8900134390

GASKET

1шт.

13

8900134391

GASKET

1шт.

14

8900134392

SUPPORT

1шт.

15

8900134393

SCREW,M20 x 45mm

M20 x 45

20шт.

16

8900134394

SEALING RING

SEALRING

3шт.

17

8900134395

RING

1шт.

18

8900134396

FITTING

1шт.

19

8900134397

BREATHER

1шт.

20

8900134398

BOLT

M16 x 50

26шт.

21

8900134399

PLUG

3шт.

22

8900134400

GASKET

3шт.

23

8900134401

SEALING RING

SEALRING

1шт.
