(30A00000060[001]) - SECTION INDEX, FRONT WHEEL HUB W/DRY BRAKE (89500414810)

Запчасти Case 330B (30A00000060[001]) - SECTION INDEX, FRONT WHEEL HUB W/DRY BRAKE (89500414810) (11) - AXLES/WHEELS

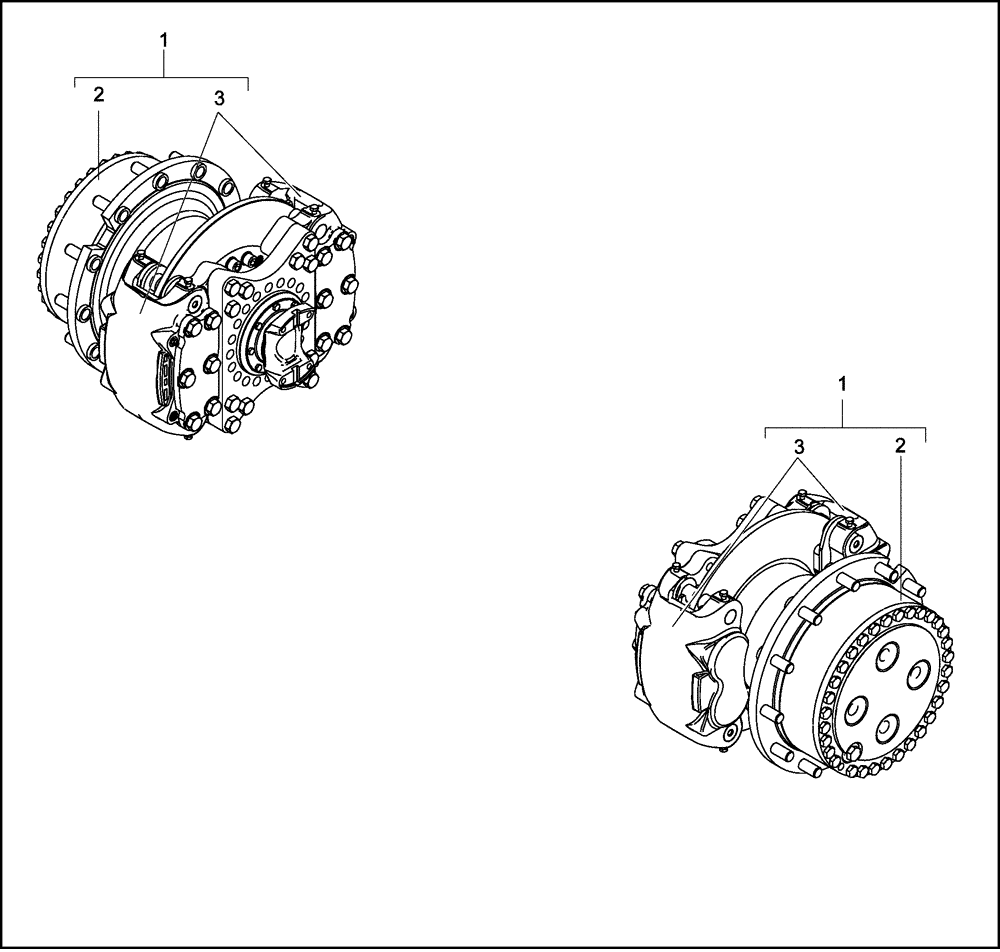

Схема запчастей Case 330B - (30A00000060[001]) - SECTION INDEX, FRONT WHEEL HUB W/DRY BRAKE (89500414810) (11) - AXLES/WHEELS
1
2
2
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500414810

HUB ASSY.

Include(s) 2,3

2шт.

2

NSS

NOT SOLD SEPARAT

Reduction Gear Assembly (87515521)

1шт.

REF

INSTRUCTION

See Figure(s) 30A00000664 (001) For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

Brake Assembly Mounting (87515522)

1шт.

REF

INSTRUCTION

See Figure(s) 30A00000665 (001) For Service Breakdown

1шт.
