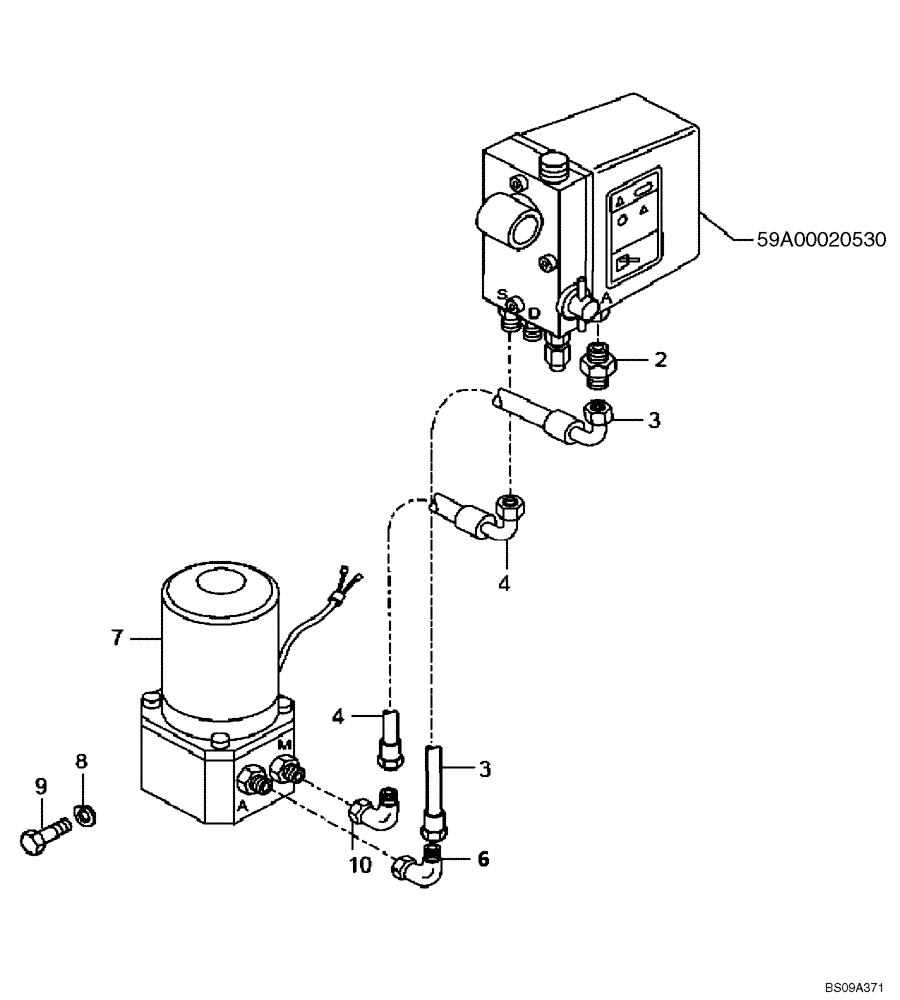

Запчасти Case 330B (59A00010549[001]) - PUMP, HYDRAULIC HOOD TILT (P.I.N. HHD0330BN7PG57000 AND AFTER) (84190593) (10) - Cab/Cowlings

REF

INSTRUCTION

Hood Tilt Hydraulics (84190593)

1шт.

2

8941009636

HYD CONNECTOR

1шт.

3

89500416785

HOSE ASSY.

1шт.

4

89500436051

HYDRAULIC HOSE

1шт.

6

89500409576

HYD CONNECTOR

Elbow

1шт.

7

89500316940

PUMP

Hood Tilt; Replaces 89504172827 Pump, Hood Tilt

1шт.

8

8900956220

LOCK WASHER

2шт.

9

8900001826

BOLT

M8 x 16

2шт.

10

89500402962

90 ELBOW

Elbow 90

1шт.
