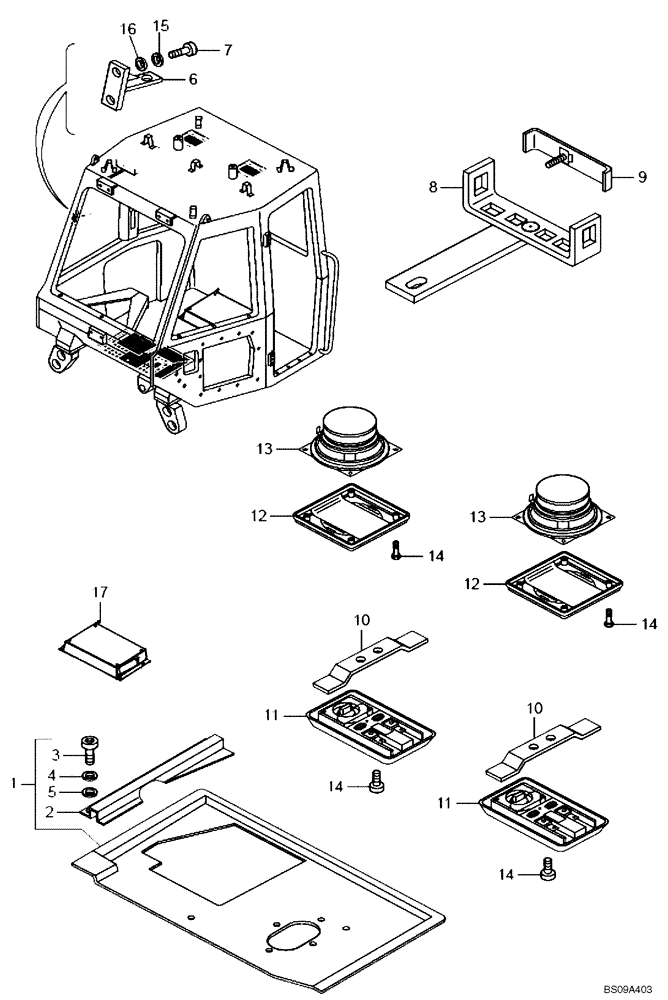

Запчасти Case 330B (51A00001652[001]) - SPEAKERS & ACCESSORIES, CAB (P.I.N. HHD0330BN7PG57000 AND AFTER) (84191321) (10) - Cab/Cowlings

REF

INSTRUCTION

Speakers & Accessories, Cab (84191321)

1шт.

1

8998341965

FOOT BOARD

1шт.

2

8900132884

CHANNEL

1шт.

3

8900021101

SCREW,M5 x 16mm

M5 x 16

8шт.

4

8900002738

WASHER

Flat

8шт.

5

8900002738

WASHER

Flat

8шт.

6

8900132947

SUPPORT

1шт.

7

8900140610

BOLT

M6 x 20

2шт.

8

8900132885

SUPPORT

1шт.

9

8900127348

COVER

1шт.

10

8900132889

BRACKET

2шт.

11

8998341204

INTERIOR LIGHT

2шт.

12

8900132901

GRILLE

2шт.

13

8900132909

SPEAKER

2шт.

14

8900145349

SCREW

12шт.

15

8916884874

WASHER

Washer

2шт.

16

8900955493

COLLAR

Collar

2шт.

17

8998341254

PEDESTAL

Seat

1шт.
