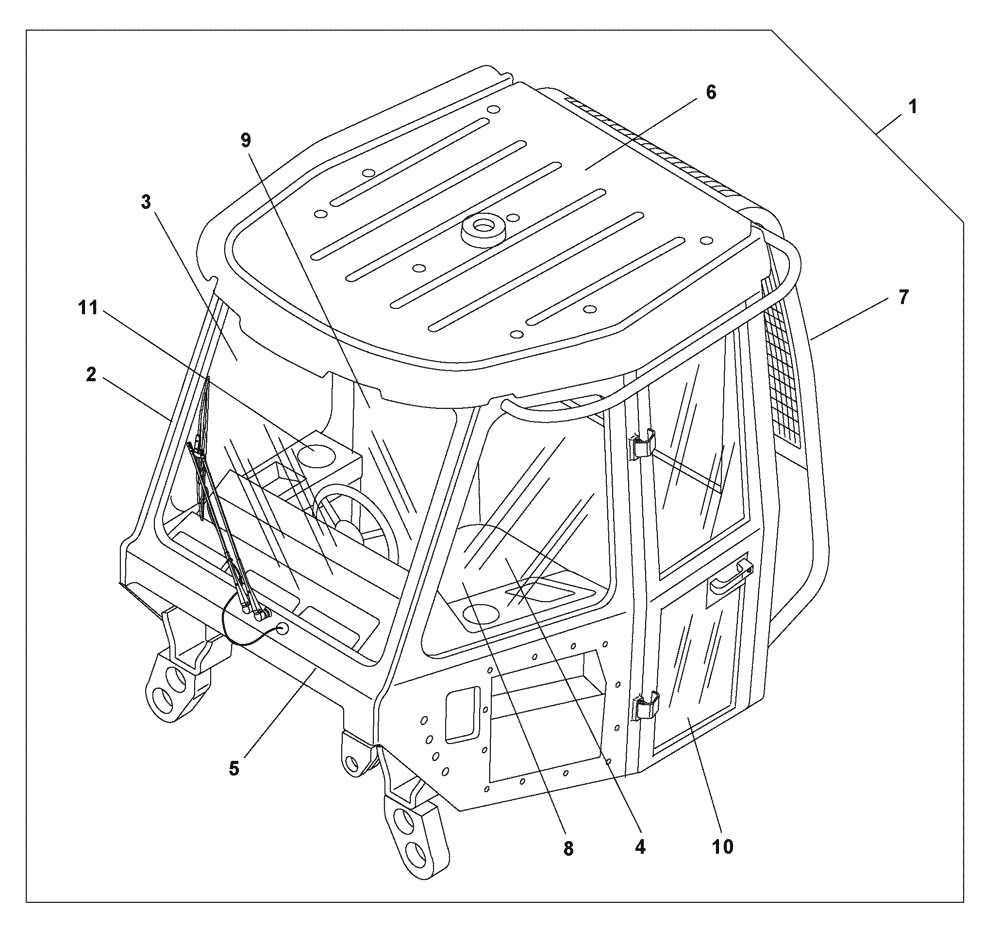

Запчасти Case 330B (51A00000058[001]) - SECTION INDEX, CAB ASSY (89500418577) (10) - Cab/Cowlings

1

89500418577

CAB

ASSY; Include(s) 2 - 11

1шт.

2

8998340165

CAB BODY

1шт.

REF

INSTRUCTION

See Figure(s) 51A00001280 (001) For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE GLACES (87365937)

1шт.

REF

INSTRUCTION

See Figure(s) 51A00001282 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

SOUND PROOF PANELS - FLOOR (87365941)

1шт.

REF

INSTRUCTION

See Figure(s) 51A00001284 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

SOUND PROOF PANELS - FLOOR / SIDES / ROOF (87365945)

1шт.

REF

INSTRUCTION

See Figure(s) 51A00001285 (001) For Service Breakdown

1шт.

6

NSS

NOT SOLD SEPARAT

INNER TRIM AND FLOOR MAT INSTALLATION (87365947)

1шт.

REF

INSTRUCTION

See Figure(s) 51A00001286 (001) For Service Breakdown

1шт.

7

NSS

NOT SOLD SEPARAT

CAB ACCESSORIES - ANTENNA (87365949)

1шт.

REF

INSTRUCTION

See Figure(s) 51A00001287 (001) For Service Breakdown

1шт.

8

NSS

NOT SOLD SEPARAT

ACCESSORIES - SPEAKERS (87365950)

1шт.

REF

INSTRUCTION

See Figure(s) 51A00001288 (001) For Service Breakdown

1шт.

9

NSS

NOT SOLD SEPARAT

ACCESSORIES - SUN VISOR (87365951)

1шт.

REF

INSTRUCTION

See Figure(s) 51A00001289 (001) For Service Breakdown

1шт.

10

NSS

NOT SOLD SEPARAT

DOOR (87365953)

1шт.

REF

INSTRUCTION

See Figure(s) 51A00001290 (001) For Service Breakdown

1шт.

11

NSS

NOT SOLD SEPARAT

DASHBOARD AND INTERNAL CONSOLE (87365954)

1шт.

REF

INSTRUCTION

See Figure(s) 51A00001291 (001) For Service Breakdown

1шт.
