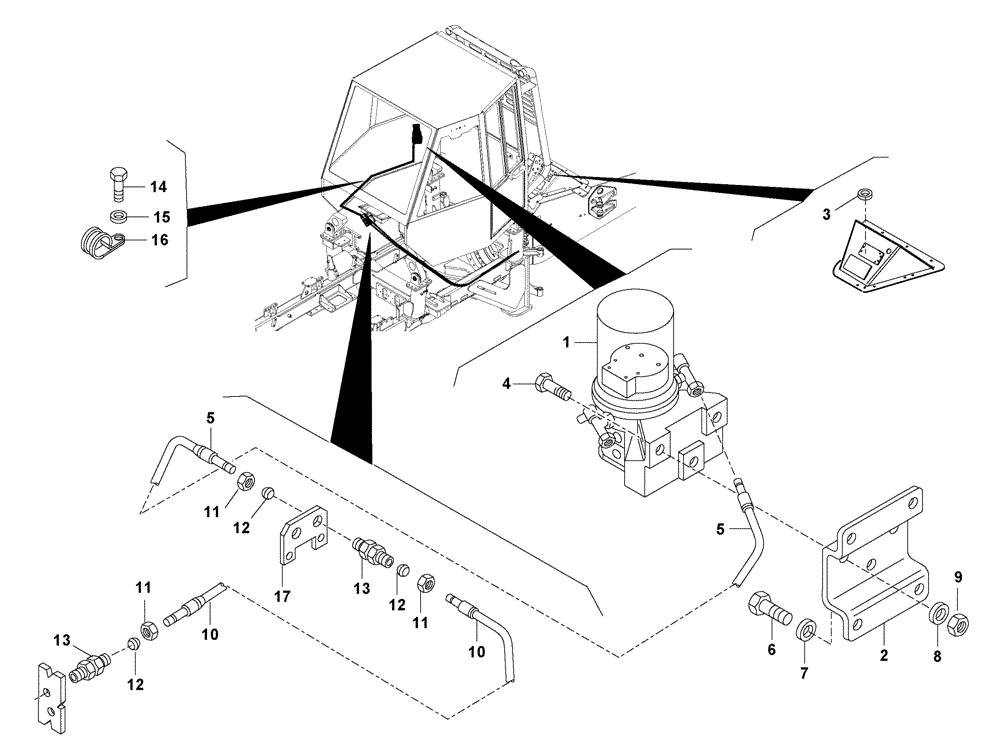

Запчасти Case 330B (94A00000522[001]) - GREASE CIRCUIT, AUTOMATIC - FRONT FRAME (87567930) (09) - Implement / Hydraulics / Frame / Brakes

1

89500419163

PUMP

1шт.

See Figure(s) 94B00000007

1шт.

2

89500409829

SUPPORT

1шт.

3

8900122469

GROMMET

Replaces 8900102075 Grommet Used On Some Models

1шт.

4

8900141336

BOLT

3шт.

5

89500419175

HOSE ASSY.

1шт.

6

8918139525

SCREW,M10 x 30mm

M10 x 30; Replaces 8900115589 Bolt M10 x 30 Used On Some Models

4шт.

7

8900113173

WASHER

4шт.

8

8900113172

WASHER

3шт.

9

8900140590

NUT

3шт.

10

89500419176

HOSE

1шт.

11

8916578115

HYD CONNECTOR

6шт.

12

8916507314

FERRULE

6шт.

13

89500401575

HYD CONNECTOR

Replaces 8900168286 Connector, Hyd

3шт.

14

8900103735

BOLT

3шт.

15

8900104348

WASHER

3шт.

16

8900049243

COLLAR

3шт.

17

8900179757

PLATE

1шт.

18

8900046313

COLLAR

Strap Band: If Used

40шт.
