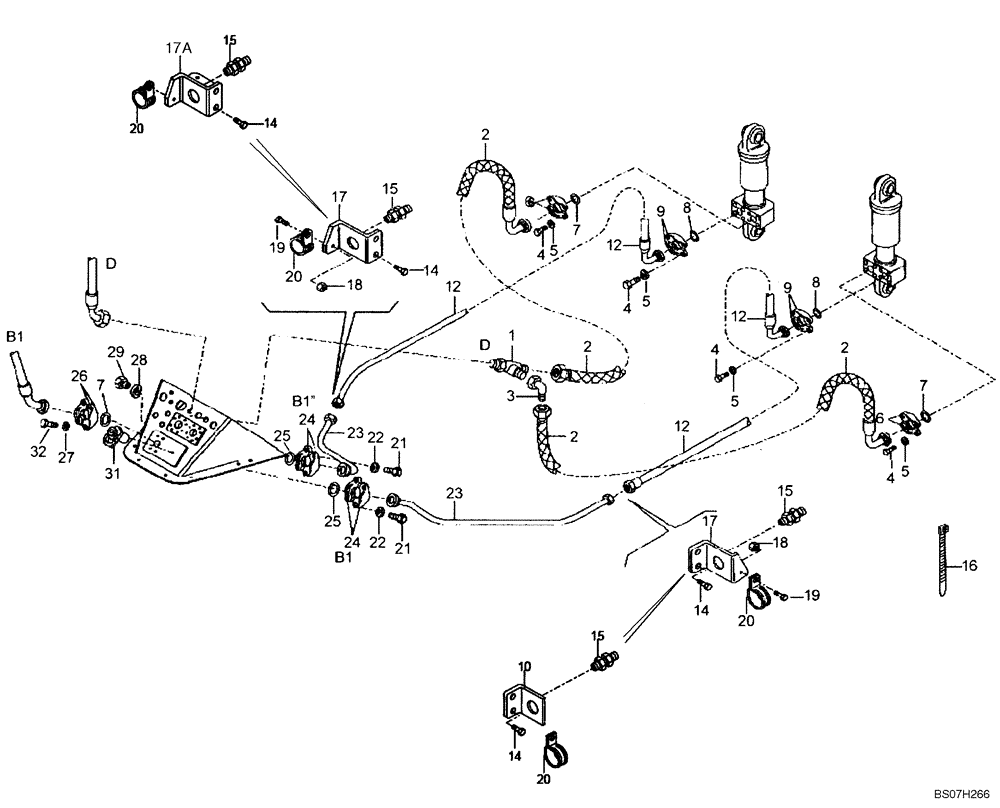

Запчасти Case 330B (72A00000730[001]) - HYDRAULIC DUMP CIRCUIT / BRACKETS (87520032) (09) - Implement / Hydraulics / Frame / Brakes

1

89500410772

HYD CONNECTOR

1шт.

2

89500417422

HOSE ASSY.

2шт.

3

89500406108

CONNECTION

1шт.

4

8916627634

BOLT

M10 x 30; Replaces 8900103291 Bolt Used On Some Models

16шт.

5

8900001049

LOCK WASHER

16шт.

6

8900191136

FLANGE

4шт.

7

8917289180

O-RING

3шт.

8

8900005720

SEALING RING

SEALRING

2шт.

9

8900191133

FLANGE

4шт.

10

89500424128

BRACKET

BRACKET, Replaces 89500421907 Bracket Ref Item 17

1шт.

12

89500421880

HOSE ASSY.,25.4mm ID x 1560mm L

2шт.

14

8916587024

BOLT,M10 x 20mm

M10 x 20

4шт.

15

89500406222

HYD CONNECTOR

2шт.

16

8900150511

COLLAR

15шт.

17

89500421907

BRACKET

If Used, No Longer Required With Ref Item 10 And 17A

2шт.

17a

89500421495

BRACKET

BRACKET, Replaces 89500421907 Bracket Ref Item 17

1шт.

18

8900125009

NUT

If Used, No Longer Required With Ref Item 10 and 17A

2шт.

19

8916597224

SCREW,M6 x 18mm

M6 x 18; If Used, No Longer Required With Ref Item 10 And 17A

2шт.

20

8900110039

COLLAR

4шт.

21

8900110408

BOLT,M14 x 45mm

M14 x 45

8шт.

22

8900102292

SPRING WASHER

8шт.

23

89500421861

HOSE ASSY.

2шт.

24

8900191137

FLANGE

4шт.

25

8917289480

O-RING

SEALRING

2шт.

26

8900191433

FLANGE

2шт.

27

8900115529

LOCK WASHER

4шт.

28

8999489024

GASKET

1шт.

29

8900155641

CAP

1шт.

31

89500414401

HYD CONNECTOR

1шт.

32

8900125035

BOLT

M12 x 40

4шт.
