Запчасти Case 330B (49A01001134[001]) - PNEUMATIC SYSTEM, FRONT FRAME - OPTION (P.I.N. HHD0330BN7PG57000 AND AFTER) (84293489) (09) - Implement / Hydraulics / Frame / Brakes

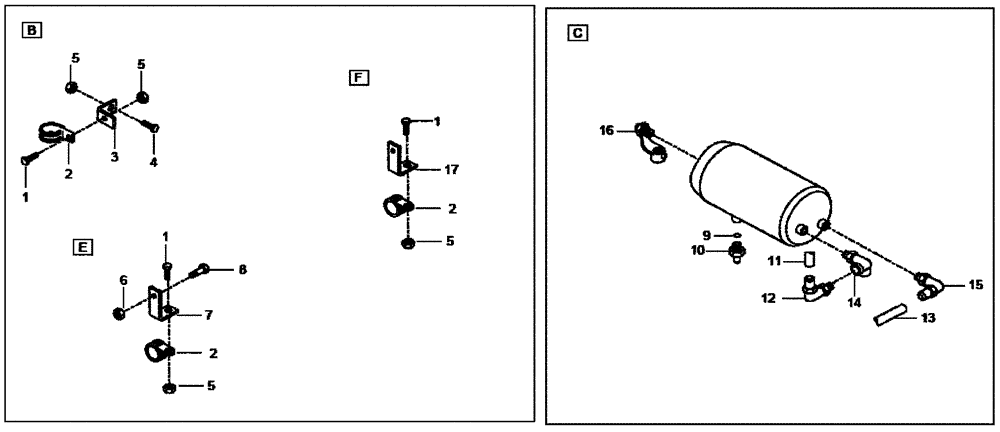

![Схема запчастей Case 330B - (49A01001134[001]) - PNEUMATIC SYSTEM, FRONT FRAME - OPTION (P.I.N. HHD0330BN7PG57000 AND AFTER) (84293489) (09) - Implement / Hydraulics / Frame / Brakes](https://partsell.ru/storage/images/casece/1097757.png)
1
5
11
2
13
3
10
9
15
5
17
16
12
5
2
5
4
1
7
8
14
2
6
1
1
8900116549
BOLT
3шт.
2
89500408251
STRAP
3шт.
3
8900163681
BRACKET
1шт.
4
8916586424
BOLT,M8 x 25mm
1шт.
5
8900115122
NUT
3шт.
6
8900140777
NUT
1шт.
7
89500433729
BRACKET
1шт.
8
8900115589
BOLT
1шт.
9
8900105501
SEALING RING COLLAR
1шт.
10
8900055240
VALVE
1шт.
11
8900095213
PLASTIC-RUBBER TUBE
1шт.
12
8900055240
VALVE
1шт.
13
8900095213
PLASTIC-RUBBER TUBE
1шт.
14
8904832082
HYD CONNECTOR
1шт.
15
8900117284
HYD CONNECTOR
1шт.
16
8900178915
HYD CONNECTOR
1шт.
17
8900170234
BRACKET
1шт.
