(49A01001110[001]) - PNEUMATIC LINES INSTAL, PARKING BRAKE - CAB (P.I.N. HHD0330BN7PG57000 AND AFTER) (84198579)

Запчасти Case 330B (49A01001110[001]) - PNEUMATIC LINES INSTAL, PARKING BRAKE - CAB (P.I.N. HHD0330BN7PG57000 AND AFTER) (84198579) (09) - Implement / Hydraulics / Frame / Brakes

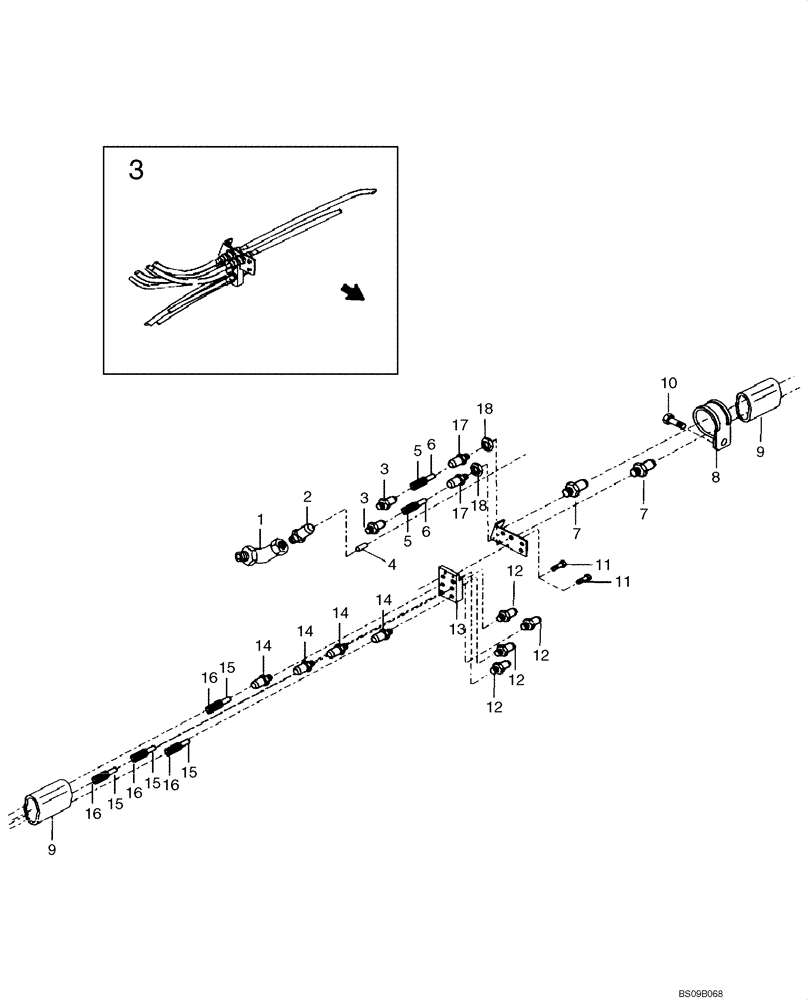

Схема запчастей Case 330B - (49A01001110[001]) - PNEUMATIC LINES INSTAL, PARKING BRAKE - CAB (P.I.N. HHD0330BN7PG57000 AND AFTER) (84198579) (09) - Implement / Hydraulics / Frame / Brakes
9
5
11
15
3
12
16
15
15
13
18
16
6
14
10
8
7
5
9
2
16
6
17
12
17
1
3
14
3
4
12
16
14
14
11
15
7
12
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pneumatic Lines Instal, Parking Brake - Cab (84198579)

1шт.

1

8900125014

HYD CONNECTOR

1шт.

2

8900117261

HYD CONNECTOR

1шт.

3

8900124030

HYD CONNECTOR

CONNECTOR, HYDRAULIC

2шт.

4

8900095008

HOSE

Plastic

1шт.

5

8900095201

TUBE

Corrugated

1шт.

6

8900095213

PLASTIC-RUBBER TUBE

1шт.

7

8900124030

HYD CONNECTOR

CONNECTOR, HYDRAULIC

2шт.

8

89500408251

STRAP

1шт.

9

89500436469

FLEXIBLE SHEATH

SHEATH, FLEXIBLE

1шт.

10

8900121098

BOLT,M8 x 16mm

M8 x 16

1шт.

11

8900116554

BOLT

M6 x 25

2шт.

12

8900121012

HYD CONNECTOR

4шт.

13

8900121014

PLATE

1шт.

14

8900121013

HYD CONNECTOR

4шт.

15

8900095211

HOSE

Plastic

1шт.

16

8900095153

FLEXIBLE SHEATH

Corrugated

1шт.

17

8900117245

HYD CONNECTOR

2шт.

18

8900117265

NUT

2шт.
