Запчасти Case 330B (49A00001110[001]) - PNEUMATIC LINES, PARKING BRAKE / VALVE INSTAL - CAB (P.I.N. HHD0330BN7PG57000 AND AFTER) (84198558) (09) - Implement / Hydraulics / Frame / Brakes

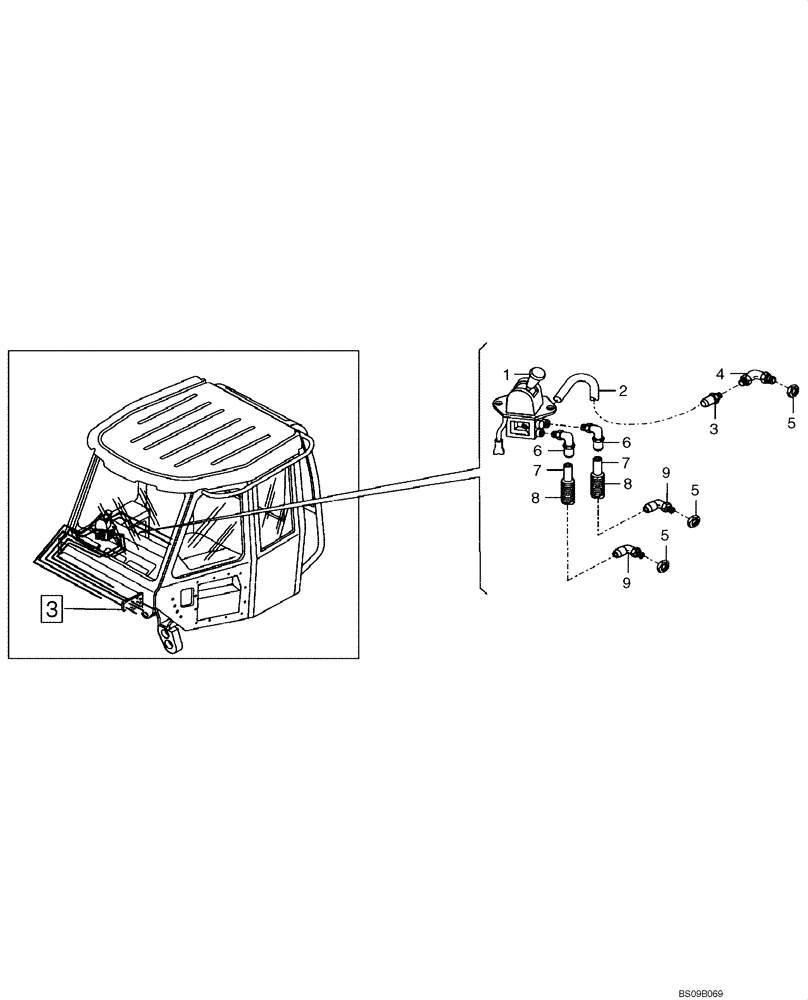

Схема запчастей Case 330B - (49A00001110[001]) - PNEUMATIC LINES, PARKING BRAKE / VALVE INSTAL - CAB (P.I.N. HHD0330BN7PG57000 AND AFTER) (84198558) (09) - Implement / Hydraulics / Frame / Brakes
3
9
1
4
9
5
8
3
6
5
7
5
7
6
2
8

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pneumatic Lines, Parking Brake / Valve Instal - Cab (84198558)

1шт.

1

8900123356

VALVE

Distributor

1шт.

2

8900095008

HOSE

1шт.

3

8900117247

HYD CONNECTOR

1шт.

4

8900123341

90 ELBOW

ELBOW 90

1шт.

5

8900117265

NUT

3шт.

6

8900117283

HYD CONNECTOR

Elbow

2шт.

7

8900095213

PLASTIC-RUBBER TUBE

1шт.

8

8900095201

TUBE

Corrugated

1шт.

9

8900117283

HYD CONNECTOR

Elbow

2шт.

Выбрано товаров: 10
