(47A05002320[001]) - LINES, WET BRAKE PNEUMATIC REAR AIR TANK (P.I.N. HHD0330BN7PG57000 AND AFTER) (84196388)

Запчасти Case 330B (47A05002320[001]) - LINES, WET BRAKE PNEUMATIC REAR AIR TANK (P.I.N. HHD0330BN7PG57000 AND AFTER) (84196388) (09) - Implement / Hydraulics / Frame / Brakes

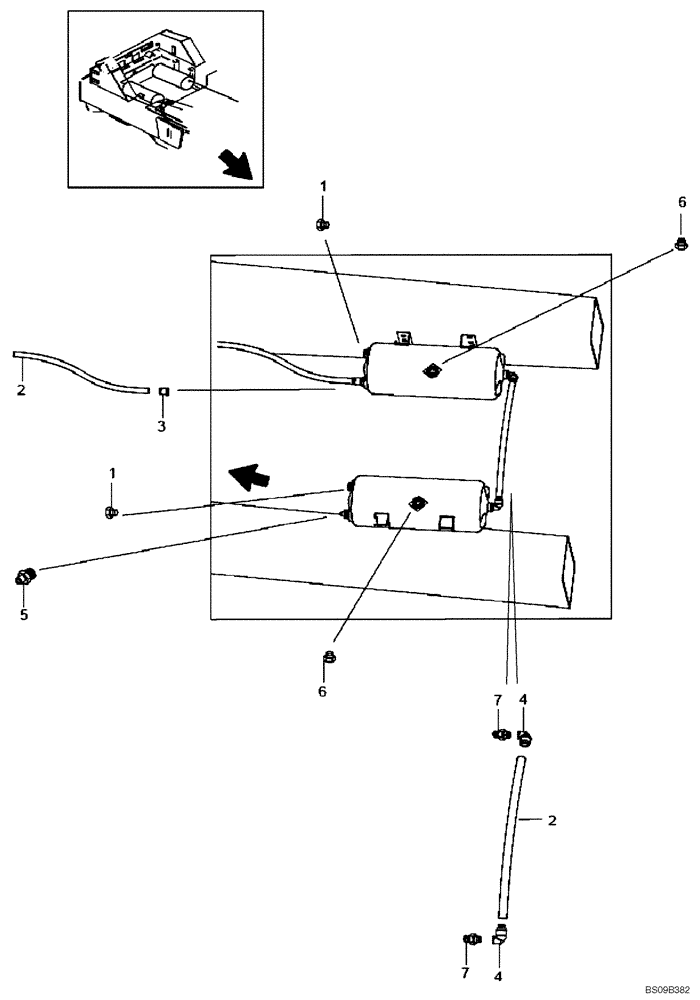

Схема запчастей Case 330B - (47A05002320[001]) - LINES, WET BRAKE PNEUMATIC REAR AIR TANK (P.I.N. HHD0330BN7PG57000 AND AFTER) (84196388) (09) - Implement / Hydraulics / Frame / Brakes
7
6
6
5
1
3
4
4
1
2
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Lines, Wet Brake Pneumatic Rear Air Tank

1шт.

1

8900117258

PLUG

2шт.

2

8900095243

PLASTIC-RUBBER TUBE

1шт.

3

8900116535

HYD CONNECTOR

1шт.

4

89500326018

90 ELBOW

2шт.

5

8900178915

HYD CONNECTOR

1шт.

6

8900055240

VALVE

2шт.

7

8900121516

HYD CONNECTOR

2шт.
