(47A02002320[001]) - LINES, PNEUMATIC WET BRAKE FRONT AIR TANK (P.I.N. HHD0330BN7PG57000 AND AFTER) (84196016)

Запчасти Case 330B (47A02002320[001]) - LINES, PNEUMATIC WET BRAKE FRONT AIR TANK (P.I.N. HHD0330BN7PG57000 AND AFTER) (84196016) (09) - Implement / Hydraulics / Frame / Brakes

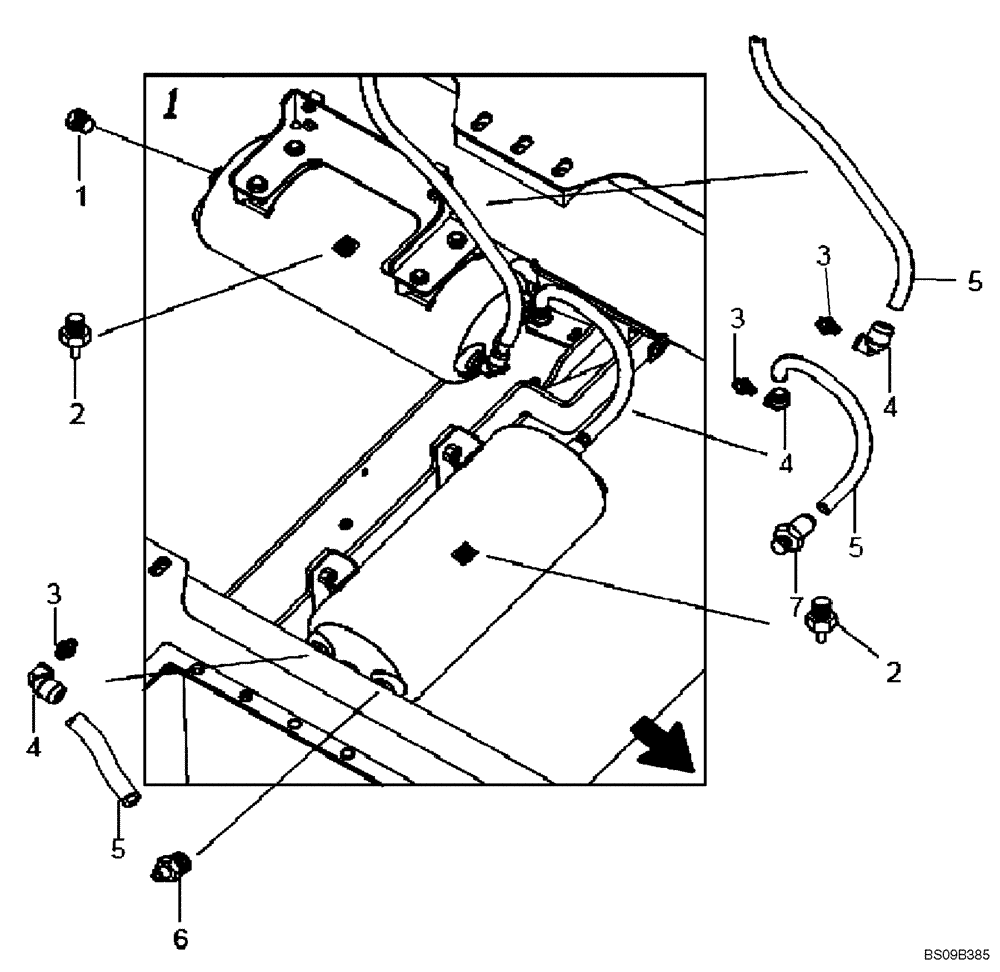

Схема запчастей Case 330B - (47A02002320[001]) - LINES, PNEUMATIC WET BRAKE FRONT AIR TANK (P.I.N. HHD0330BN7PG57000 AND AFTER) (84196016) (09) - Implement / Hydraulics / Frame / Brakes
5
3
5
3
2
3
4
1
4
2
6
4
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Lines, Pneumatic Wet Brake Front Air Tank

1шт.

1

8900117258

PLUG

1шт.

2

8900055240

VALVE

2шт.

3

8900121516

HYD CONNECTOR

3шт.

4

89500326018

90 ELBOW

3шт.

5

8900095243

PLASTIC-RUBBER TUBE

1шт.

6

8900178915

HYD CONNECTOR

1шт.

7

8900116535

HYD CONNECTOR

1шт.
