(47A02002319[001]) - PNEUMATIC LINES, INTERMEDIATE AXLE WET BRAKE (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84195918)

Запчасти Case 330B (47A02002319[001]) - PNEUMATIC LINES, INTERMEDIATE AXLE WET BRAKE (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84195918) (09) - Implement / Hydraulics / Frame / Brakes

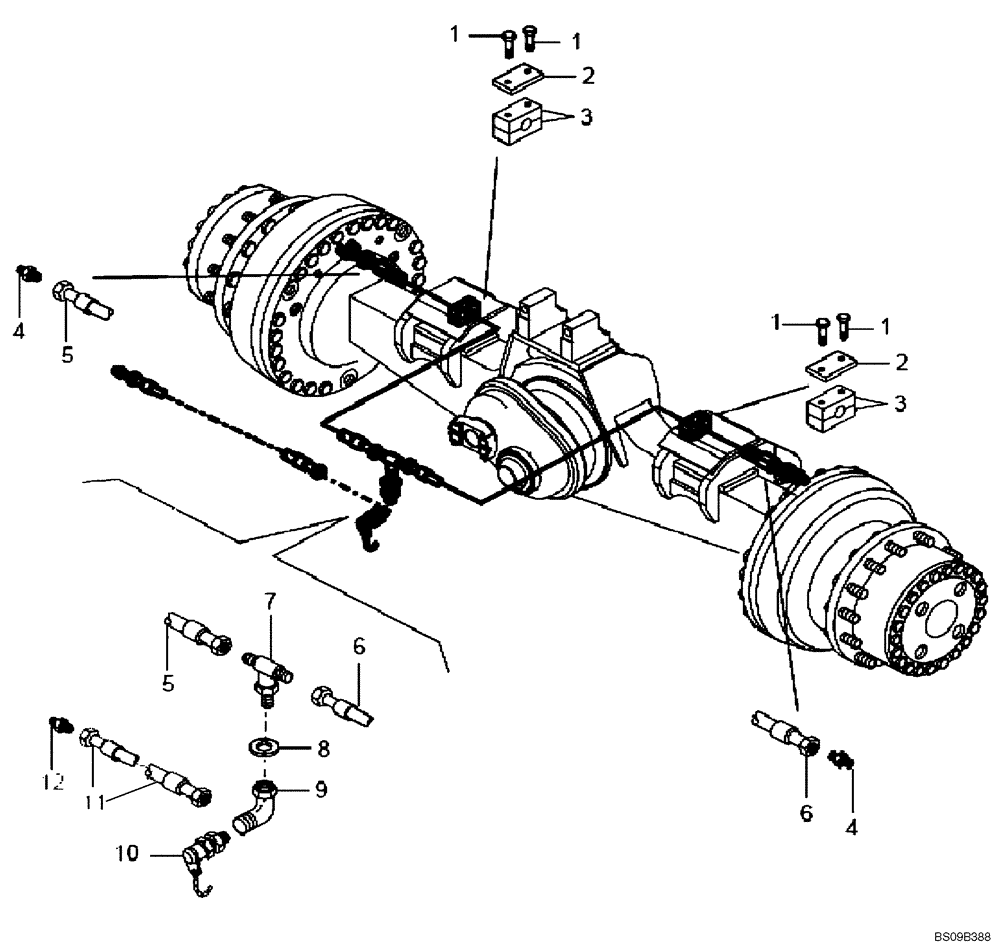

Схема запчастей Case 330B - (47A02002319[001]) - PNEUMATIC LINES, INTERMEDIATE AXLE WET BRAKE (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84195918) (09) - Implement / Hydraulics / Frame / Brakes
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pnuematic Lines, Intermediate Axle Wet brake (84195918)

1шт.

1

8900125036

BOLT,M6 x 30mm

M6 x 30

4шт.

2

89500407422

PLATE

2шт.

3

8900108841

COLLAR

Clamp

4шт.

4

89500407708

HYD CONNECTOR

2шт.

5

89500417201

TUBE,1.5 mm DIA x 12 mm L

Assy

1шт.

6

89500417202

TUBE,1.5 mm DIA x 12 mm L

Assy

1шт.

7

89500408781

CONNECTION

Tee

1шт.

8

8900956690

COLLAR

Collar

1шт.

9

89500420788

ELBOW

1шт.

10

8900183360

SWIVEL CONNECTION

1шт.

11

89500434524

HYDRAULIC HOSE

Assy

1шт.

12

89500430156

HYD CONNECTOR

1шт.

Выбрано товаров: 13
