(47A01002320[001]) - LINES, PNEUMATIC SYSTEM WET BRAKE (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84196001)

Запчасти Case 330B (47A01002320[001]) - LINES, PNEUMATIC SYSTEM WET BRAKE (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84196001) (09) - Implement / Hydraulics / Frame / Brakes

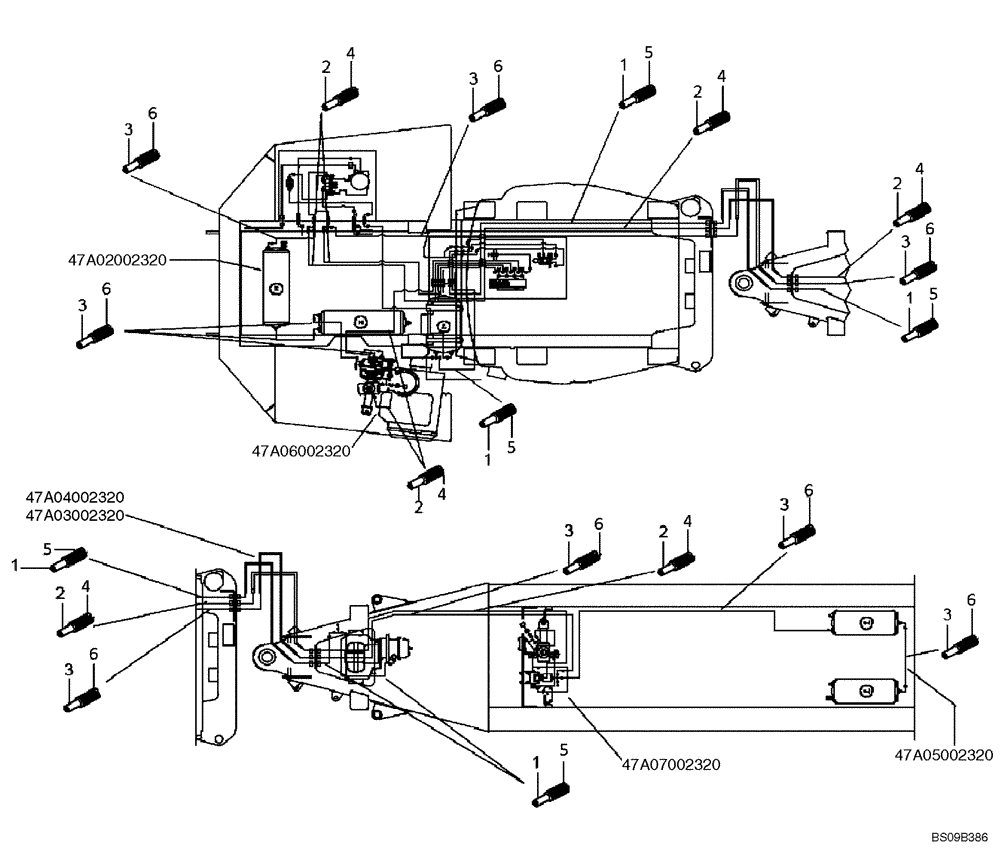

Схема запчастей Case 330B - (47A01002320[001]) - LINES, PNEUMATIC SYSTEM WET BRAKE (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84196001) (09) - Implement / Hydraulics / Frame / Brakes
47a03002320
1
3
47a06002320
2
4
6
3
3
5
4
4
6
6
5
4
1
3
6
47a04002320
3
2
1
4
47a07002320
6
6
5
2
6
4
2
47a02002320
2
1
3
4
5
47a05002320
1
6
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Lines, Pneumatic System Wet Brake (84196001)

1шт.

1

8900095213

PLASTIC-RUBBER TUBE

1шт.

2

8900095211

HOSE

Plastic

1шт.

3

8900095243

PLASTIC-RUBBER TUBE

1шт.

4

8900095153

FLEXIBLE SHEATH

Tube

1шт.

5

8900095201

TUBE

Corrugated

1шт.

6

8900095198

PLASTIC-RUBBER TUBE

1шт.

Выбрано товаров: 7
