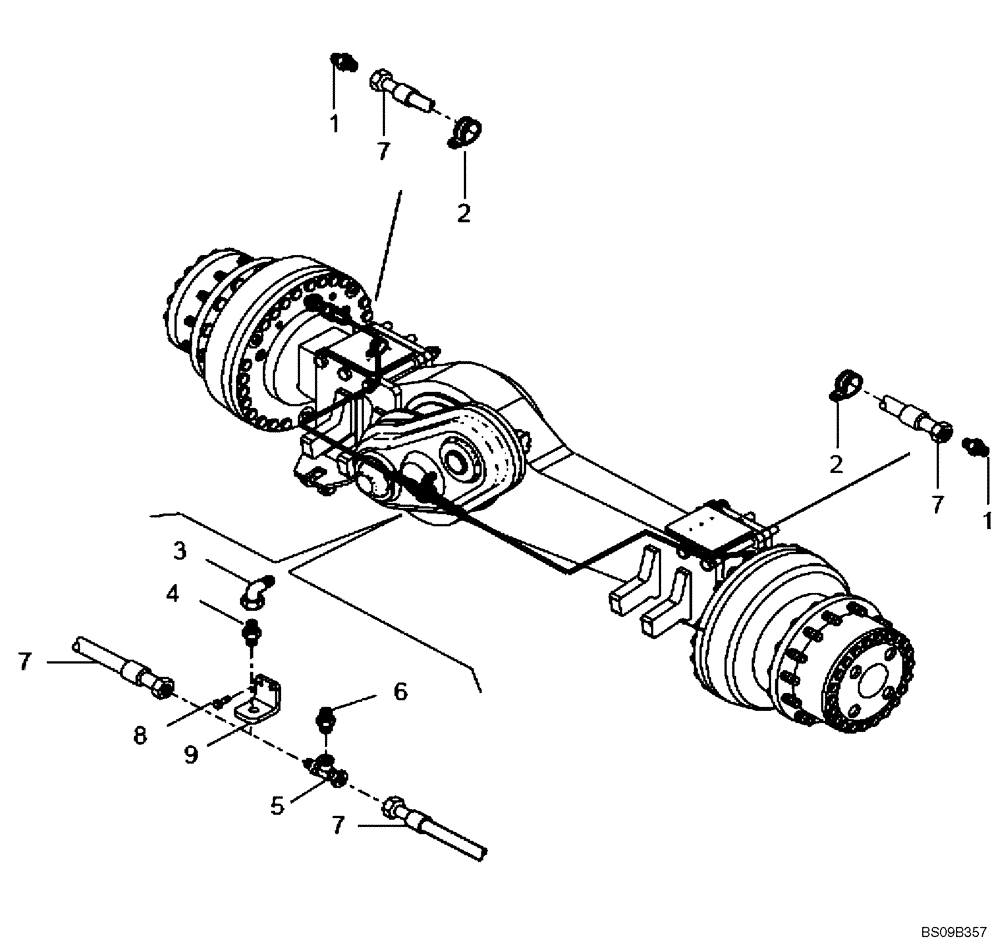

Запчасти Case 330B (47A01002319[001]) - PNEUMATIC LINES, FRONT AXLE WET BRAKE (P.I.N. HHD330BN7PG57000 AND AFTER) (84195796) (09) - Implement / Hydraulics / Frame / Brakes

REF

INSTRUCTION

Pneumatic Lines, Front Axle Wet Brake (84195796)

1шт.

1

89500407708

HYD CONNECTOR

2шт.

2

8900142305

CLAMP

2шт.

3

89500406108

CONNECTION

Elbow

1шт.

4

89500408781

CONNECTION

Tee

1шт.

5

89500414349

TEE

1шт.

6

89500436422

HYD CONNECTOR

1шт.

7

89500436009

HYDRAULIC HOSE

2шт.

8

8900116554

BOLT

M6 x 25

2шт.

9

89500433987

BRACKET

1шт.
