(47A01002317[001]) - PNEUMATIC LINES INSTAL, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0330BN7PG57000 AND AFTER) (84193920)

Запчасти Case 330B (47A01002317[001]) - PNEUMATIC LINES INSTAL, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0330BN7PG57000 AND AFTER) (84193920) (09) - Implement / Hydraulics / Frame / Brakes

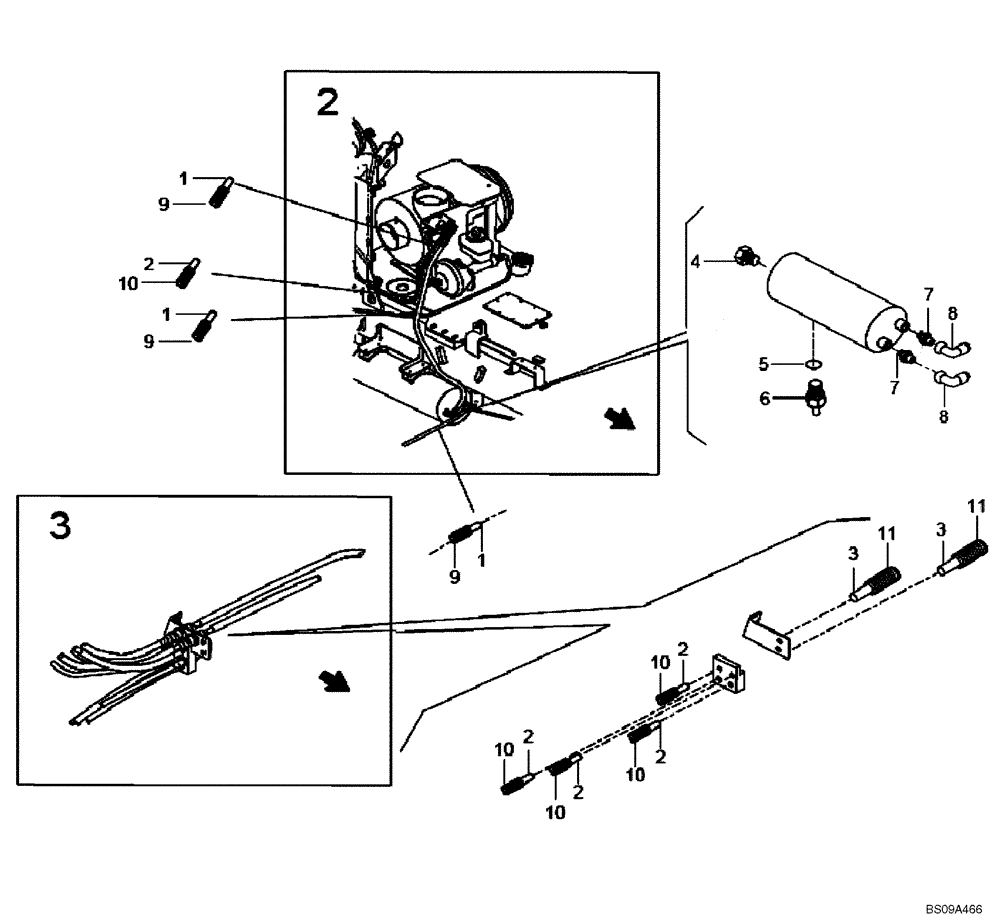

Схема запчастей Case 330B - (47A01002317[001]) - PNEUMATIC LINES INSTAL, BRAKE SYSTEM - FRONT CHASSIS (P.I.N. HHD0330BN7PG57000 AND AFTER) (84193920) (09) - Implement / Hydraulics / Frame / Brakes
9
8
2
2
10
4
3
3
10
2
10
11
9
5
11
8
8
2
9
7
10
1
10
2
1
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pneumatic Lines, Brake System - Front Chassis (84193920)

1шт.

1

8900095243

PLASTIC-RUBBER TUBE

10шт.

2

8900095211

HOSE

Plastic

15шт.

3

8900095213

PLASTIC-RUBBER TUBE

7шт.

4

8900117258

PLUG

1шт.

5

8900005683

COPPER WASHER

1шт.

6

8900055240

VALVE

1шт.

7

8900121516

HYD CONNECTOR

2шт.

8

89500326018

90 ELBOW

2шт.

9

8900095198

PLASTIC-RUBBER TUBE

TUBE, PLASTIC-RUBBER

1шт.

10

8900095153

FLEXIBLE SHEATH

Corrugated

1шт.

11

8900095201

TUBE

Tube Corrugated

1шт.

Выбрано товаров: 12
