Запчасти Case 330B (47A01002263[001]) - AIR RESERVOIR, FRONT / REAR - BRAKE SYSTEM (P.I.N. HHD0330BN7PG57000 AND AFTER) (84155666) (09) - Implement / Hydraulics / Frame / Brakes

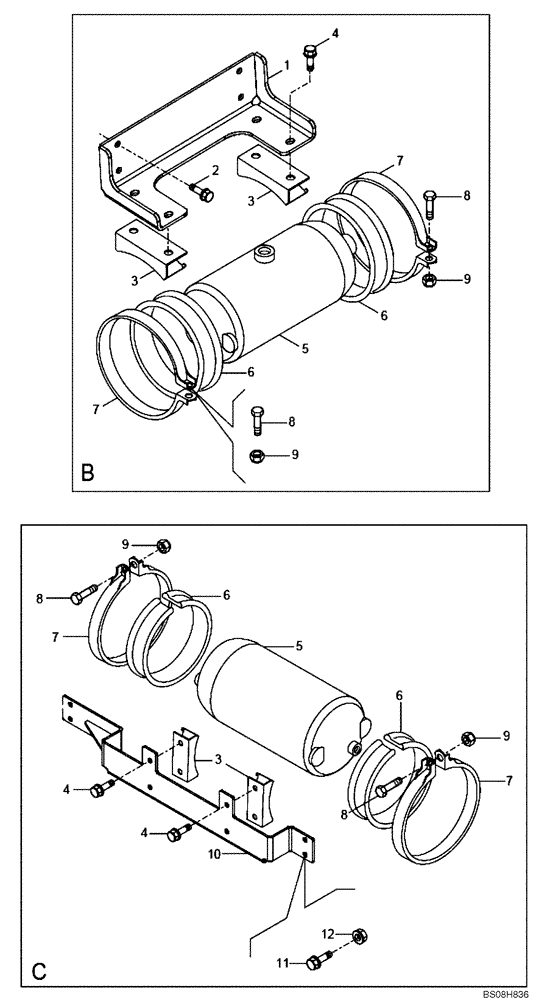

Схема запчастей Case 330B - (47A01002263[001]) - AIR RESERVOIR, FRONT / REAR - BRAKE SYSTEM (P.I.N. HHD0330BN7PG57000 AND AFTER) (84155666) (09) - Implement / Hydraulics / Frame / Brakes
7
5
8
3
3
7
9
2
8
12
3
6
10
7
11
4
6
4
5
1
7
6
8
8
6
9
9
9
4

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Box B Is The Reservoir Installation For Rear Brake System; Box C Is the Reservoir Installation For the Front Brake System (84155666)

1шт.

1

89500433512

SUPPORT

1шт.

2

8900121098

BOLT,M8 x 16mm

M8 x 16

4шт.

3

8941028666

HEAT EXCHANGER

Bracket; Qty Was 4 - Not Used In Front Brake Reservoir Instal Box C

2шт.

4

8900118223

BOLT,M12 x 30mm

M12 x 30; Qty Was 8 - Not Used In Front Brake Reservoir Instal Box C

4шт.

5

89504197586

AIR TANK

15 Liter

4шт.

5

89504197587

AIR RESERVOIR

20 Liter

2шт.

6

8941006908

RING

4шт.

7

8900123326

CLAMP

Band

4шт.

8

8998435104

SCREW,#10 x 1 1/2"

M10 x 1.5

4шт.

9

8900025351

NUT

S.L.

4шт.

10

89500433511

SUPPORT

1шт.

11

8916588225

BOLT,M12 x 40mm

M12 x 40; Part No Longer Needed As Shown In Box C

4шт.

12

8900118202

NUT

Part No Longer Needed As Shown In Box C

4шт.

Выбрано товаров: 14
