(47A00002320[001]) - PNEUMATIC LINES, FRONT CHASSIS WET BRAKE (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84195941)

Запчасти Case 330B (47A00002320[001]) - PNEUMATIC LINES, FRONT CHASSIS WET BRAKE (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84195941) (09) - Implement / Hydraulics / Frame / Brakes

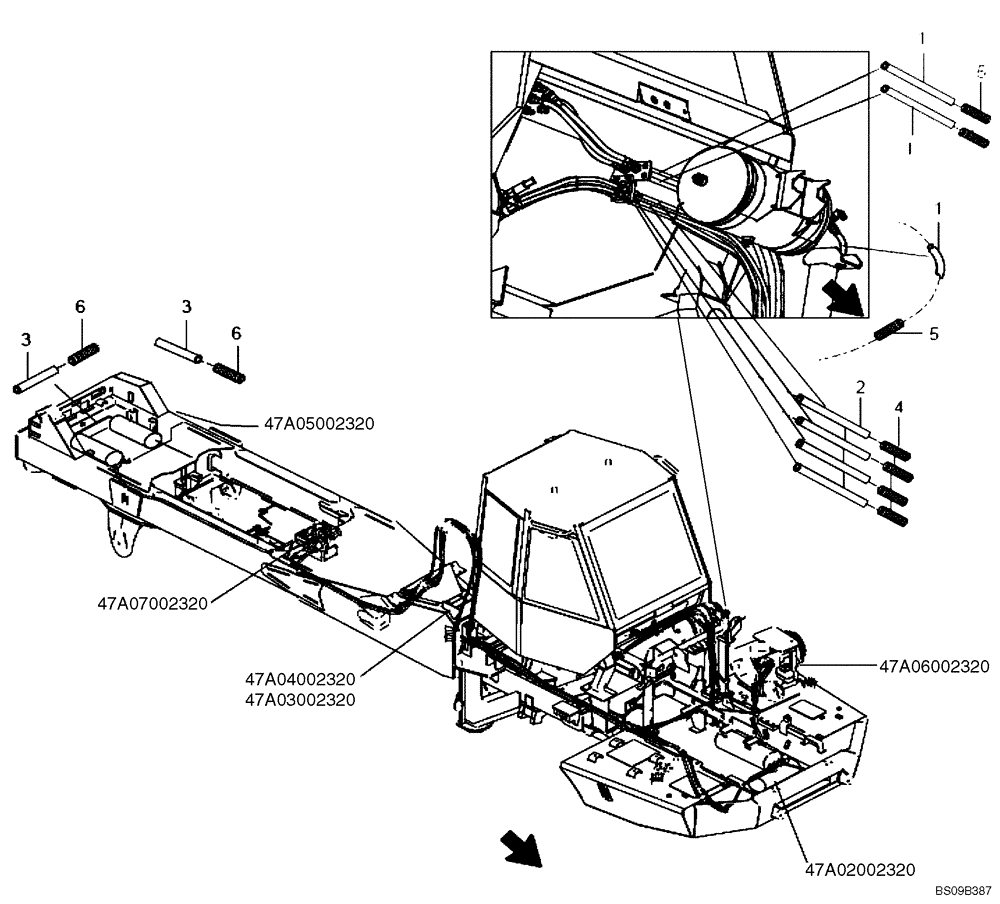

Схема запчастей Case 330B - (47A00002320[001]) - PNEUMATIC LINES, FRONT CHASSIS WET BRAKE (P.I.N. HHD 0330BN7PG57000 AND AFTER) (84195941) (09) - Implement / Hydraulics / Frame / Brakes
47a07002320
47a02002320
5
47a06002320
47a03002320
6
5
1
47a5002320
3
1
3
47a04002320
1
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pneumatic Lines, Front Chassis Wet Brake (84195941)

1шт.

1

8900095213

PLASTIC-RUBBER TUBE

1шт.

2

8900095211

HOSE

Plastic

1шт.

3

8900095243

PLASTIC-RUBBER TUBE

1шт.

4

8900095153

FLEXIBLE SHEATH

Tube

1шт.

5

8900095201

TUBE

Corrugated

1шт.

6

8900095198

PLASTIC-RUBBER TUBE

1шт.

Выбрано товаров: 7
