(47A00002289[002]) - BRAKE SYSTEM OIL CIRCUIT INSTAL (P.I.N. HHD0330BN7PG57000 AND AFTER) (84185251 REV B)

Запчасти Case 330B (47A00002289[002]) - BRAKE SYSTEM OIL CIRCUIT INSTAL (P.I.N. HHD0330BN7PG57000 AND AFTER) (84185251 REV B) (09) - Implement / Hydraulics / Frame / Brakes

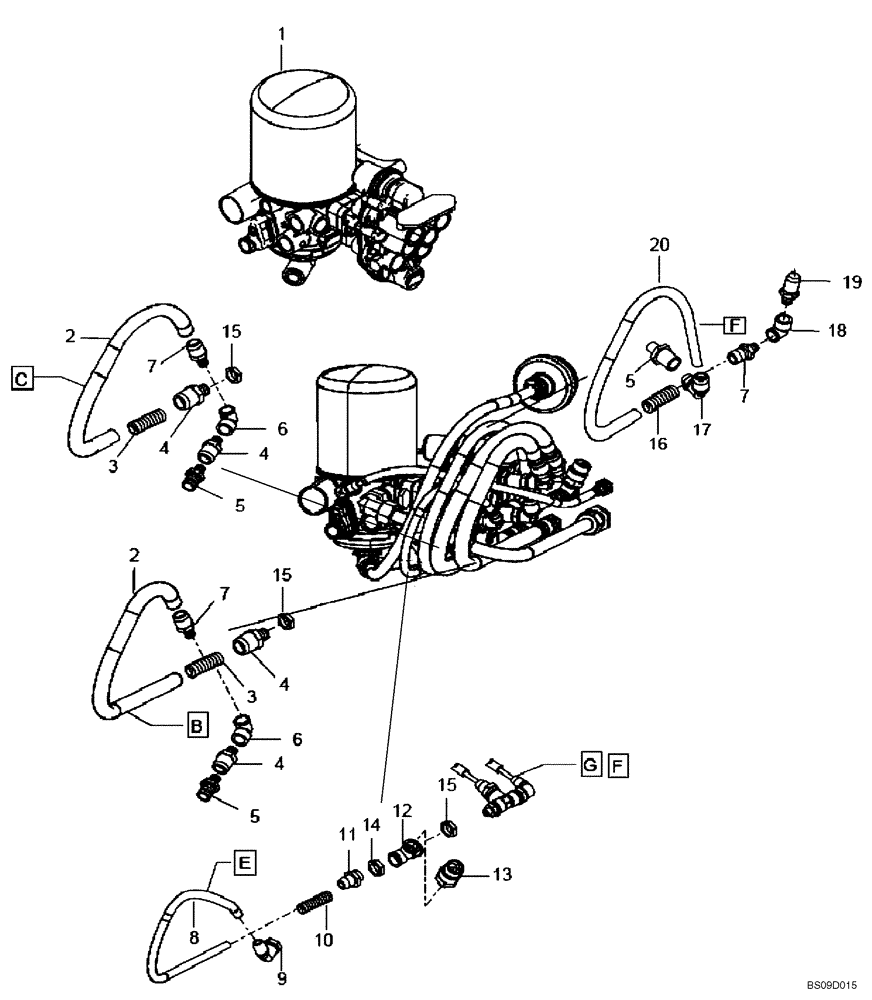

Схема запчастей Case 330B - (47A00002289[002]) - BRAKE SYSTEM OIL CIRCUIT INSTAL (P.I.N. HHD0330BN7PG57000 AND AFTER) (84185251 REV B) (09) - Implement / Hydraulics / Frame / Brakes
4
5
3
16
5
7
4
15
13
10
15
4
17
19
14
11
7
7
2
4
6
1
12
15
20
8
6
5
9
18
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Brake System Oil Circuit (84185251 Rev B)

1шт.

1

8941285078

RECEIVER-DRYER

Brake System

1шт.

2

8900095243

PLASTIC-RUBBER TUBE

1шт.

3

8900095198

PLASTIC-RUBBER TUBE

1шт.

4

8900117247

HYD CONNECTOR

2шт.

5

8900117263

HYD CONNECTOR

CONECTOR, HYDRAULIC

3шт.

6

89500316230

ELBOW

2шт.

7

8900121507

HYD CONNECTOR

3шт.

8

8900095211

HOSE

1шт.

9

8900117282

HYD CONNECTOR

Elbow

1шт.

10

8900095153

FLEXIBLE SHEATH

1шт.

11

8900117244

HYD CONNECTOR

2шт.

12

8900121520

HYD CONNECTOR

Tee

2шт.

13

89504255336

SWITCH

1шт.

14

8900117264

NUT

1шт.

15

8900117265

NUT

3шт.

16

8900095201

TUBE

CORRUGATED

1шт.

17

8900117283

HYD CONNECTOR

Elbow

1шт.

18

8900121509

90 ELBOW

1шт.

19

8900117245

HYD CONNECTOR

1шт.

20

8900095213

PLASTIC-RUBBER TUBE

1шт.
