Запчасти Case 330B (47A00001938[002]) - HYDRAULIC LINES, INTERMEDIATE AXLE W/DRY BRAKE (87583532) (09) - Implement / Hydraulics / Frame / Brakes

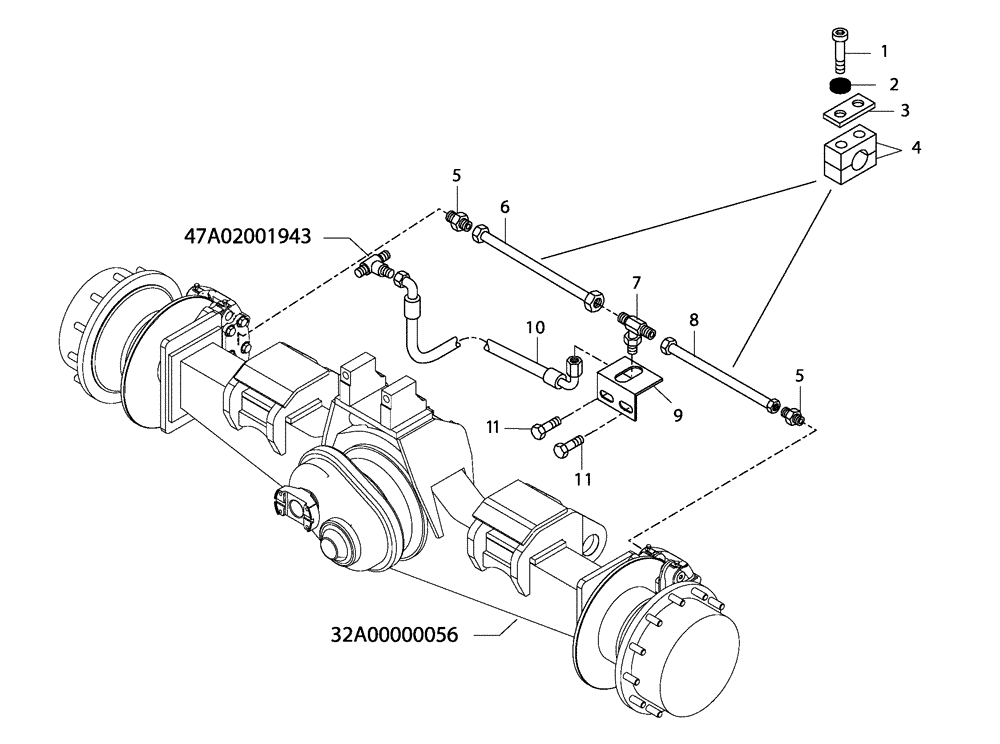

Схема запчастей Case 330B - (47A00001938[002]) - HYDRAULIC LINES, INTERMEDIATE AXLE W/DRY BRAKE (87583532) (09) - Implement / Hydraulics / Frame / Brakes
4
6
2
5
8
7
10
1
11
3
9
11
5

Артикул

Название

Примечание

Количество

1

8900106597

BOLT

M6 x 30

4шт.

2

8900955275

LOCK WASHER

4шт.

3

89500407422

PLATE

2шт.

4

8900108841

COLLAR

2шт.

5

89500424283

HYD CONNECTOR

Replaces 89500413864 Connector, Hyd

2шт.

6

89500421898

TUBE,1.5 mm DIA x 12 mm L

Tube Assy Is Shown As A Straight Piece, But in Actuality Contains (5) Bends

1шт.

7

89500408781

CONNECTION

1шт.

8

89500421897

TUBE,1.5 mm DIA x 12 mm L

Tube Assy Is Shown As A Straight Piece, But in Actuality Contains (5) Bends

1шт.

9

89500418184

BRACKET

1шт.

10

89500414320

HOSE ASSY.

1шт.

11

8916586424

BOLT,M8 x 25mm

M8 x 25

2шт.

Выбрано товаров: 11
