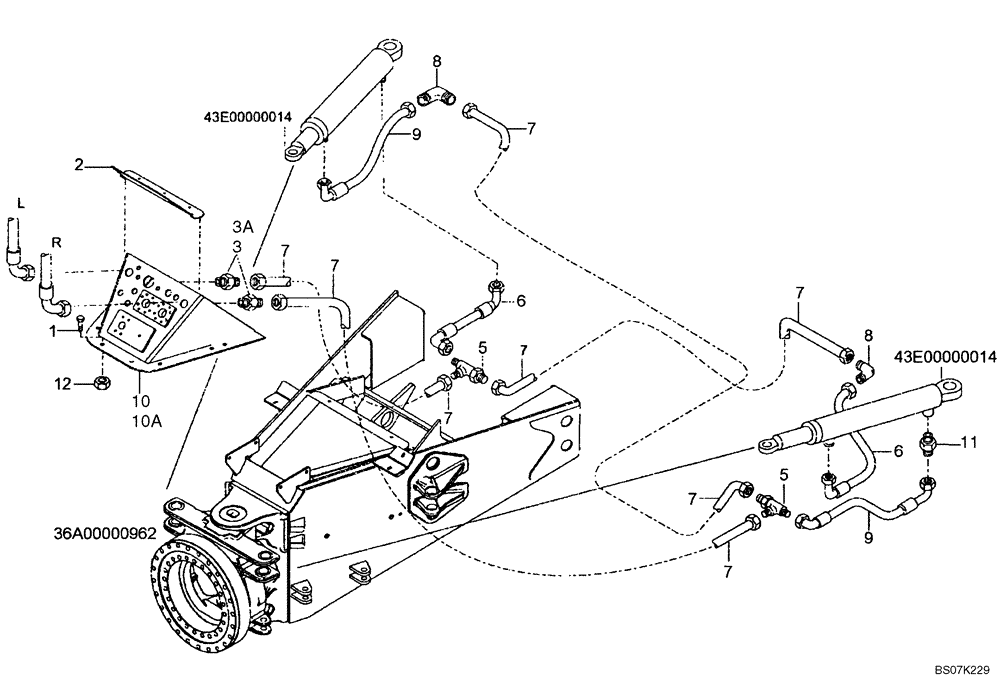

Запчасти Case 330B (43A03000853[001]) - HYDRAULIC STEERING CIRCUIT / FRAME (87557509) (09) - Implement / Hydraulics / Frame / Brakes

1

8918139525

SCREW,M10 x 30mm

Qty Was 11; Replaces 8900115589 Bolt

7-11шт.

2

89500415204

COVER

1шт.

3

89500407662

HYD CONNECTOR

If Used

2шт.

3a

89500418020

HYD CONNECTOR

If Used; Threaded End 13/16" - 16 UNF, Connector Length 58mm

2шт.

4

89500417420

HOSE ASSY.

Not Illustrated; No Longer Available Order 89500417421 Hose Assy

2шт.

5

89500410772

HYD CONNECTOR

2шт.

6

89500417425

HOSE ASSY.

2шт.

7

89500417421

HOSE ASSY.

Qty Was 2

2-4шт.

8

89500417584

ELBOW

2шт.

9

89500417426

HOSE ASSY.

2шт.

10

89500411768

BRACKET

If Used

1шт.

10a

89500411769

COVER

If Used

1шт.

11

89500408454

HYD CONNECTOR

If Used

4шт.

12

8900140777

NUT

If Used

7шт.
