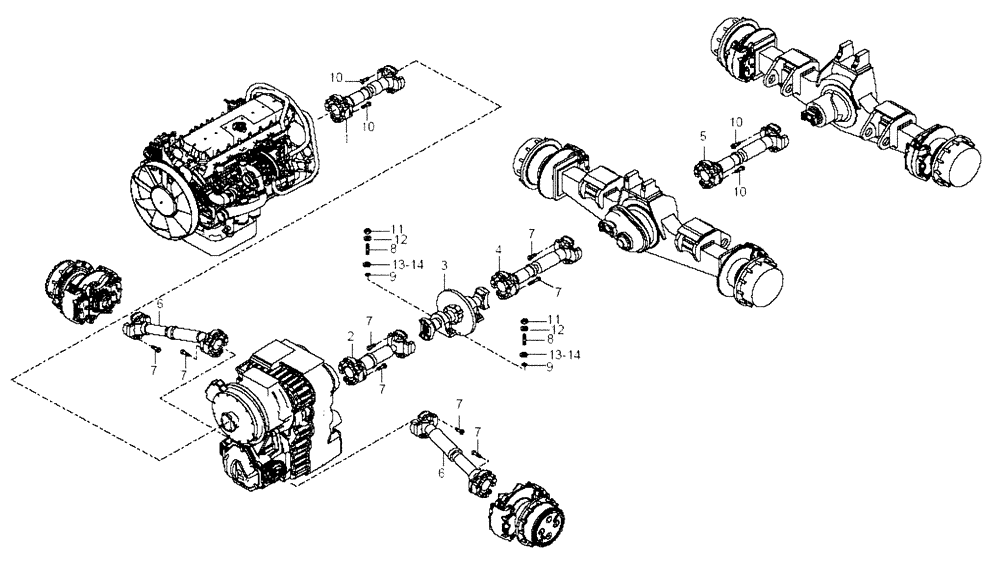

Запчасти Case 330B (24A00000700[002]) - SECTION INDEX, PROPELLER SHAFT INSTAL (87617573) (03) - Converter / Transmission

1

89500423647

DRIVE SHAFT

Replaces 89500402242 Propeller Shaft Used On Some Models

1шт.

REF

INSTRUCTION

See Figure(s) 24FG00000067 (001) For Service Breakdown

1шт.

2

89500423646

PROPELLER SHAFT

Replaces 89500409535 Driveshaft

1шт.

REF

INSTRUCTION

See Figure(s) 24FG00000050 (001) For Service Breakdown

1шт.

3

89500424390

DRIVE SHAFT

Replaces 89500414634 Propeller Shaft Used On Some Models

1шт.

REF

INSTRUCTION

See Figure(s) 24FG00000051 (001) For Service Breakdown

1шт.

4

89500417278

PROPELLER SHAFT

1шт.

REF

INSTRUCTION

See Figure(s) 24FG00000052 (001) For Service Breakdown

1шт.

5

89500417279

PROPELLER SHAFT

1шт.

REF

INSTRUCTION

See Figure(s) 24FG00000053 (001) For Service Breakdown

1шт.

6

89500417277

PROPELLER SHAFT

2шт.

REF

INSTRUCTION

See Figure(s) 24FG00000054 (001) For Service Breakdown

1шт.

7

8900194263

BOLT

1/2"-20 UNF x 2"1/2

32шт.

8

8900154446

STUD

4шт.

9

8900140552

COLLAR

4шт.

10

8900194261

BOLT

16шт.

11

8900151937

NUT

M20 x1.5

4шт.

12

8917096214

WASHER

Replaces 8900140552 Collar Used On Some Models

4шт.

13

89500422661

SHIM

4шт.

14

89500422662

SHIM

4шт.
