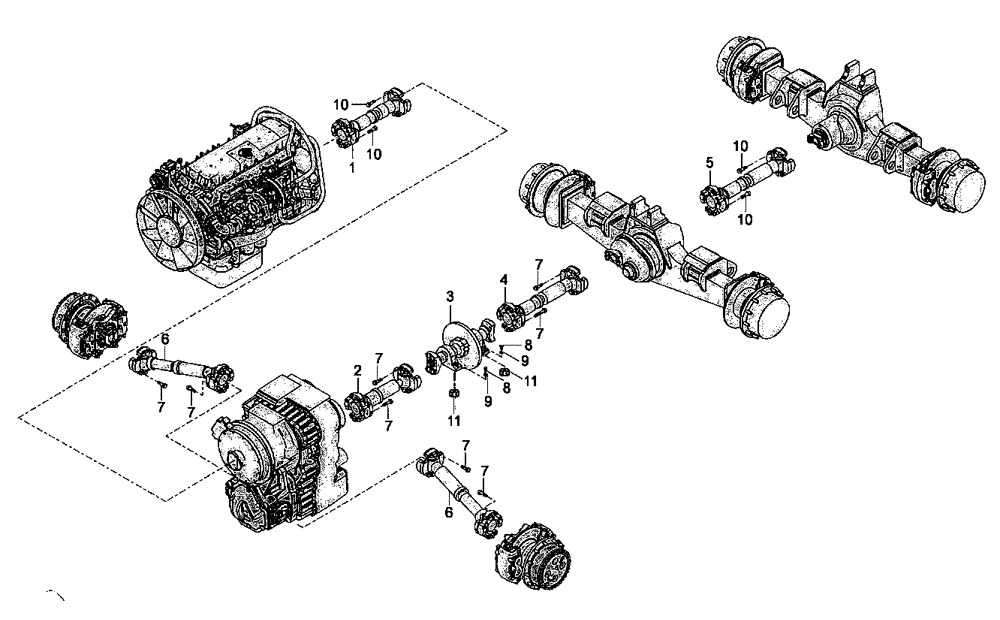

Запчасти Case 330B (24A00000700[001]) - SECTION INDEX, PROPELLER SHAFT INSTAL (87399011) (03) - Converter / Transmission

1

89500402242

PROPELLER SHAFT

Until P.I.N. HHD0330BN6PG56022

1шт.

REF

INSTRUCTION

See Figure(s) 24FG00000049 (001) For Service Breakdown

1шт.

1

89500423647

DRIVE SHAFT

P.I.N. HHD0330BN6PG56023 And After

1шт.

REF

INSTRUCTION

See Figure(s) 24FG00000067 (001) For Service Breakdown

1шт.

2

89500423646

PROPELLER SHAFT

Replaces 89500409535 Driveshaft

1шт.

REF

INSTRUCTION

See Figure(s) 24FG00000050 (001) For Service Breakdown

1шт.

3

89500424390

DRIVE SHAFT

Replaces 89500414634 Drive shaft

1шт.

REF

INSTRUCTION

See Figure(s) 24FG00000051 (001) For Service Breakdown

1шт.

4

89500417278

PROPELLER SHAFT

1шт.

REF

INSTRUCTION

See Figure(s) 24FG00000052 (001) For Service Breakdown

1шт.

5

89500417279

PROPELLER SHAFT

1шт.

REF

INSTRUCTION

See Figure(s) 24FG00000053 (001) For Service Breakdown

1шт.

6

89500417277

PROPELLER SHAFT

2шт.

REF

INSTRUCTION

See Figure(s) 24FG00000054 (001) For Service Breakdown

1шт.

7

8900194263

BOLT

1/2"-20 UNF x 2"1/2

32шт.

8

8900100905

STUD

Replaces 8916671934 Bolt .50 UNF x 2.0 10.9

4шт.

9

8900140552

COLLAR

4шт.

10

8900194261

BOLT

16шт.

11

8900151937

NUT

M20 x1.5; If Used

4шт.
