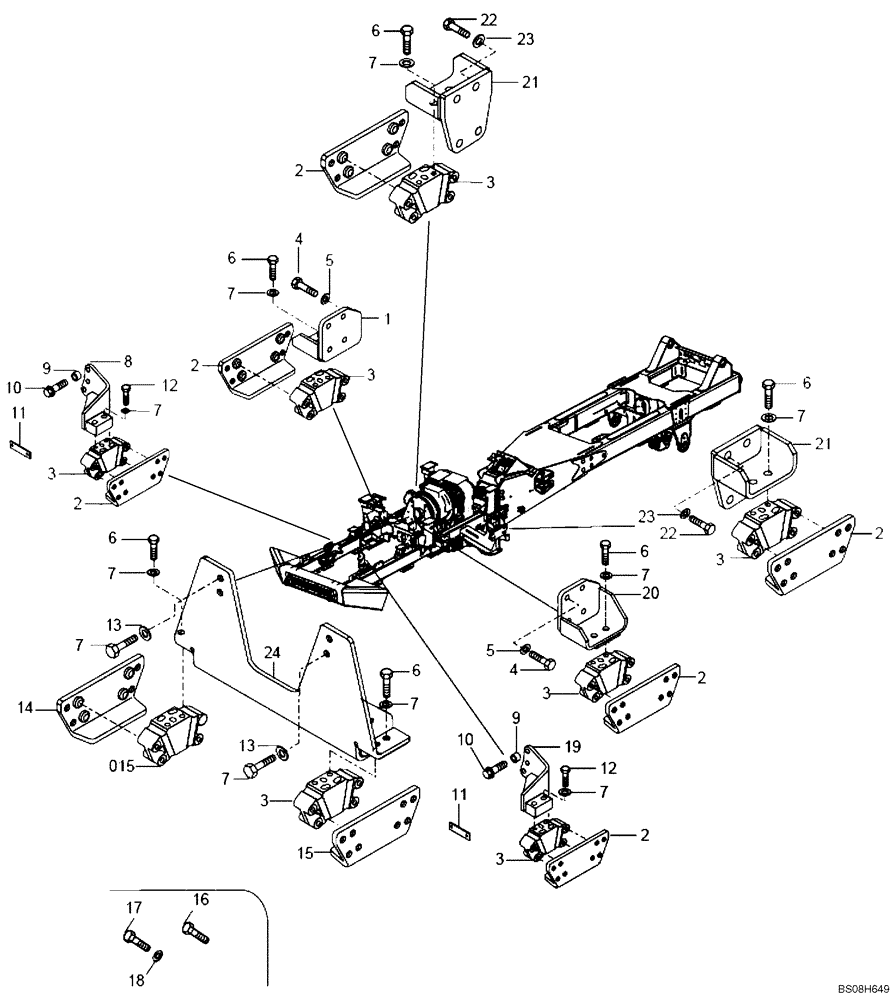

Запчасти Case 330B (18A00010907[001]) - GEARBOX - MOUNTING (P.I.N. HHD0330BN7PG57000 AND AFTER) (84147060) (03) - Converter / Transmission

REF

INSTRUCTION

Transmission Mounting Supports (84147060)

1шт.

1

89500402994

SUPPORT

Rear RH

1шт.

2

89500402990

SUPPORT

6шт.

3

8900167070

SILENTBLOC

Vibration Control

8шт.

4

8900116825

BOLT

M16 x 40

8шт.

5

8900110597

WASHER

Bevel

8шт.

6

8900015277

BOLT,M16 x 40mm

12шт.

7

8900156986

WASHER

Bevel

20шт.

8

89500403120

SUPPORT

Front RH

1шт.

9

89500403090

SPACER

6шт.

10

8900125743

BOLT

6шт.

11

89500432182

SPACER

4шт.

12

8900005445

BOLT

4шт.

13

8916678534

BOLT

M16 x 85

4шт.

14

89500433068

SUPPORT

RH

1шт.

15

89500433067

SUPPORT

LH

1шт.

16

8900135847

BOLT

32шт.

17

8900104172

BOLT

32шт.

18

8900141457

COLLAR

64шт.

19

89500403119

SUPPORT

Front LH

1шт.

20

89500402993

SUPPORT

Rear LH

1шт.

21

89500431195

SUPPORT

2шт.

22

8900116041

BOLT

8шт.

23

8900140505

COLLAR

8шт.

24

89500431201

CROSSMEMBER

1шт.

25

89500437031

SPACER

Spacer, 10MM thick, Not Illustrated, Used between the transmission supports and the anti vibration pads from serial number 57000 thru 57007

6шт.

26

8900001760

BOLT,M16 x 1.5

Bolt, M16 x 1.5 x 50mm, Not Illustrated, Replaces item 6 bolt when item 25 spacer is used. From serial number 57000 thru 57007

12шт.
