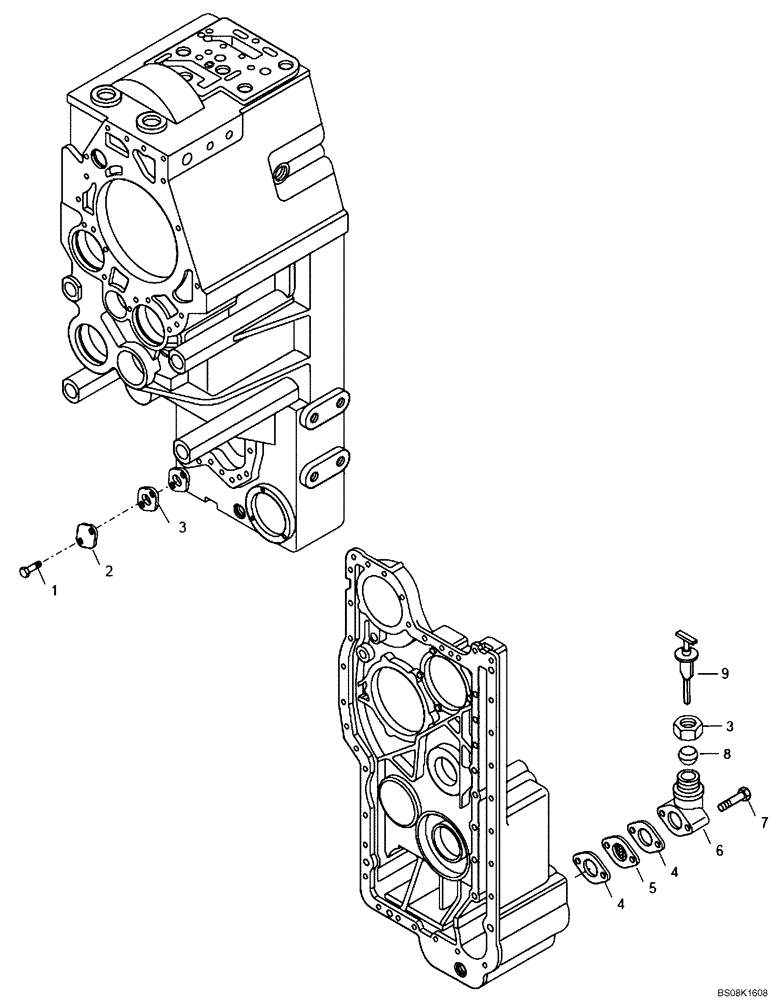

Запчасти Case 330B (18A00001006[001]) - DIPSTICK AND NECK (P.I.N. HHD0330BN7PG57000 AND AFTER) (84168935) (03) - Converter / Transmission

REF

INSTRUCTION

Dipstick And Neck Instal (84168935)

1шт.

1

8963100337

BOLT

M8 x 16

2шт.

2

8603217

COVER

Plate

1шт.

3

87454005

NUT

Union

1шт.

4

8603281

GASKET

3шт.

5

8960800034

DEFLECTOR

Screen Baffle

1шт.

6

87454003

NECK FILLER

1шт.

7

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

2шт.

8

87454004

RING

Cutting

1шт.

9

8900129025

HANDLE

1шт.
